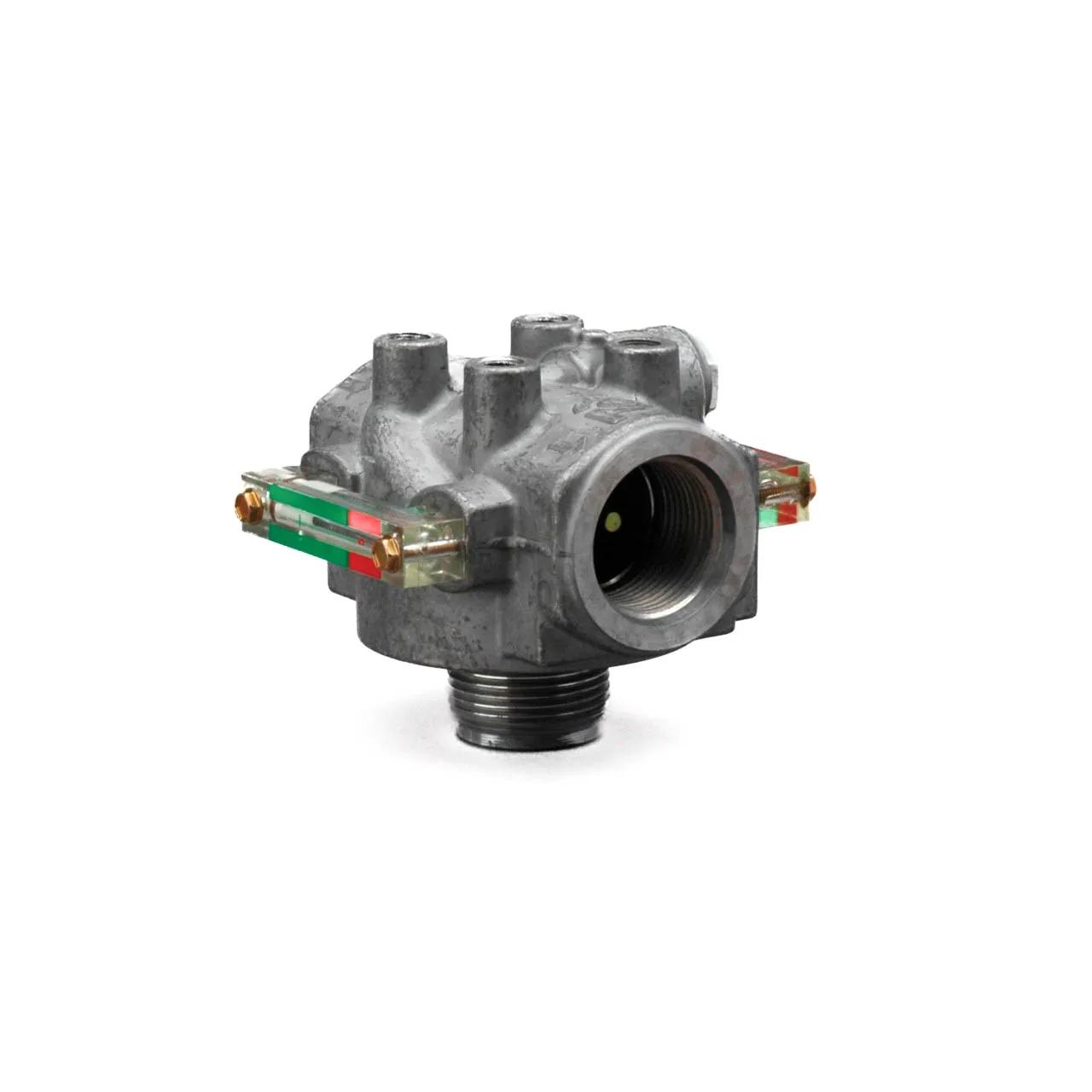

Head Assy L: 4 in, OD: SAE-16 , H: 3,38 in
#DONP564850
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Bypass Valve |
Yes |
| Bypass Valve Setting LR |
4.36 psi (0.3 bar) |
| Family |
HMK04 |
| Filter-to-Head Thread |
1 3/8-12 UN |
| Height |
3-3/8 in |
| Inlet Size |
SAE-16 |
| Length |
4 in |
| Outer Diameter |
SAE-16 |
| Outlet Size |
SAE-16 |
| Series |
HMK04/24 |
| Length Range |
4 to 4.99 in |
| Flange Type |
S.A.E "B" 4-bolt |
| P564850 |
| DN P564850 |
| 2191-P564850 |
| DONP564850 |
