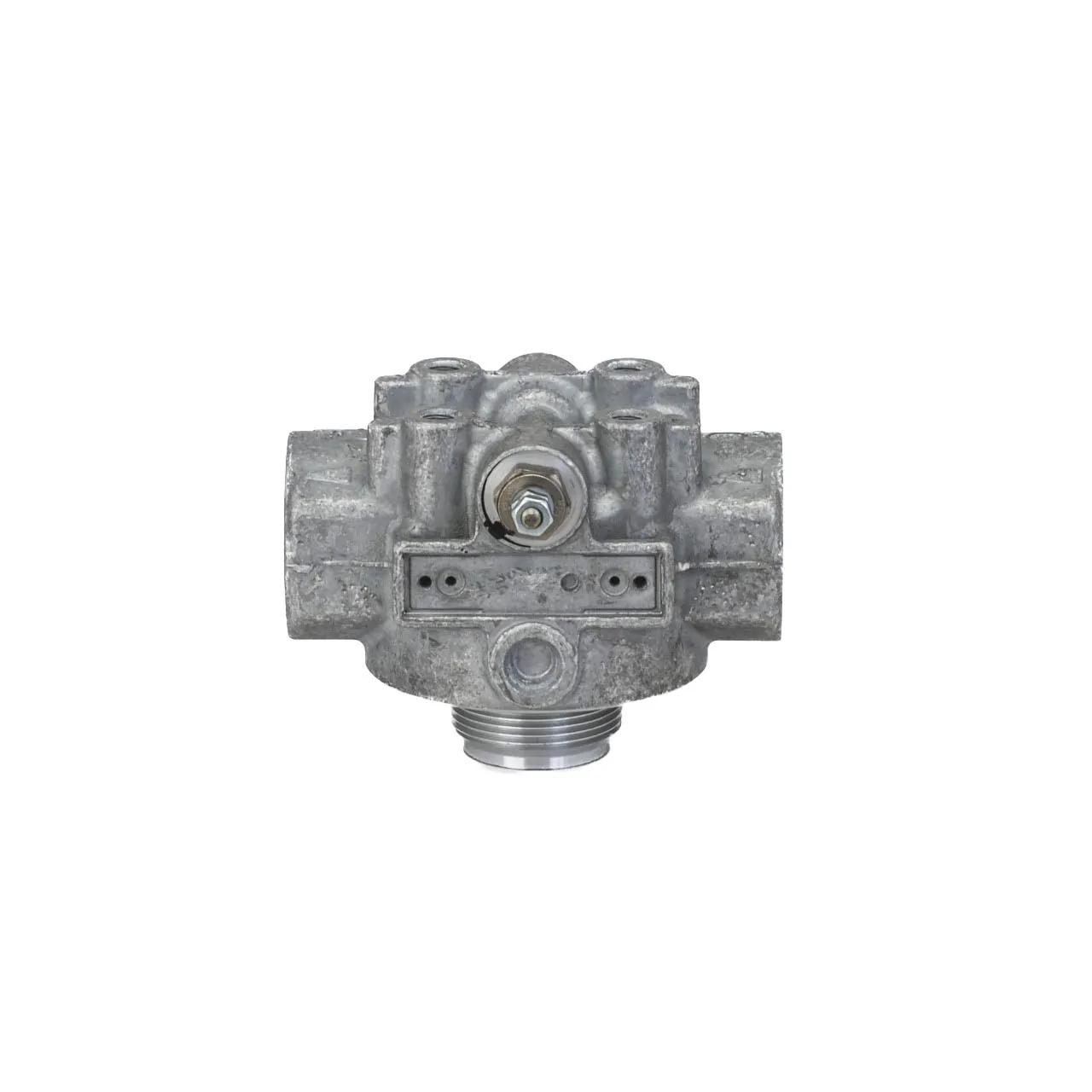

Head Assy L: 5,03 in, OD: 1 1/4-11 1/2 NPT , H: 3,79 in
#DONP167621
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Family | HMK05 |
| Filter-to-Head Thread | 1 3/4-12 UN |
| Height | 3-51/64 in |
| Inlet Size | 1 1/4-11 1/2 NPT |
| Length | 5-1/32 in |
| Outer Diameter | 1 1/4-11 1/2 NPT |
| Outlet Size | 1 1/4-11 1/2 NPT |
| Series | HMK05/25 |
| Length Range | 5 to 5.99 in |
Specifications
| Maximum Flow Suction | Return Only GPM |
| Minimum Operating Temperature (Deg F) | -22°F (-30°C) |
| Number Of Elements | 1 |
Interchanges & Equivalent parts:
| P167621 |
| OB8773 |
| DN P167621 |
| DN P167621 |
| 2191-P167621 |
| DONP167621 |
