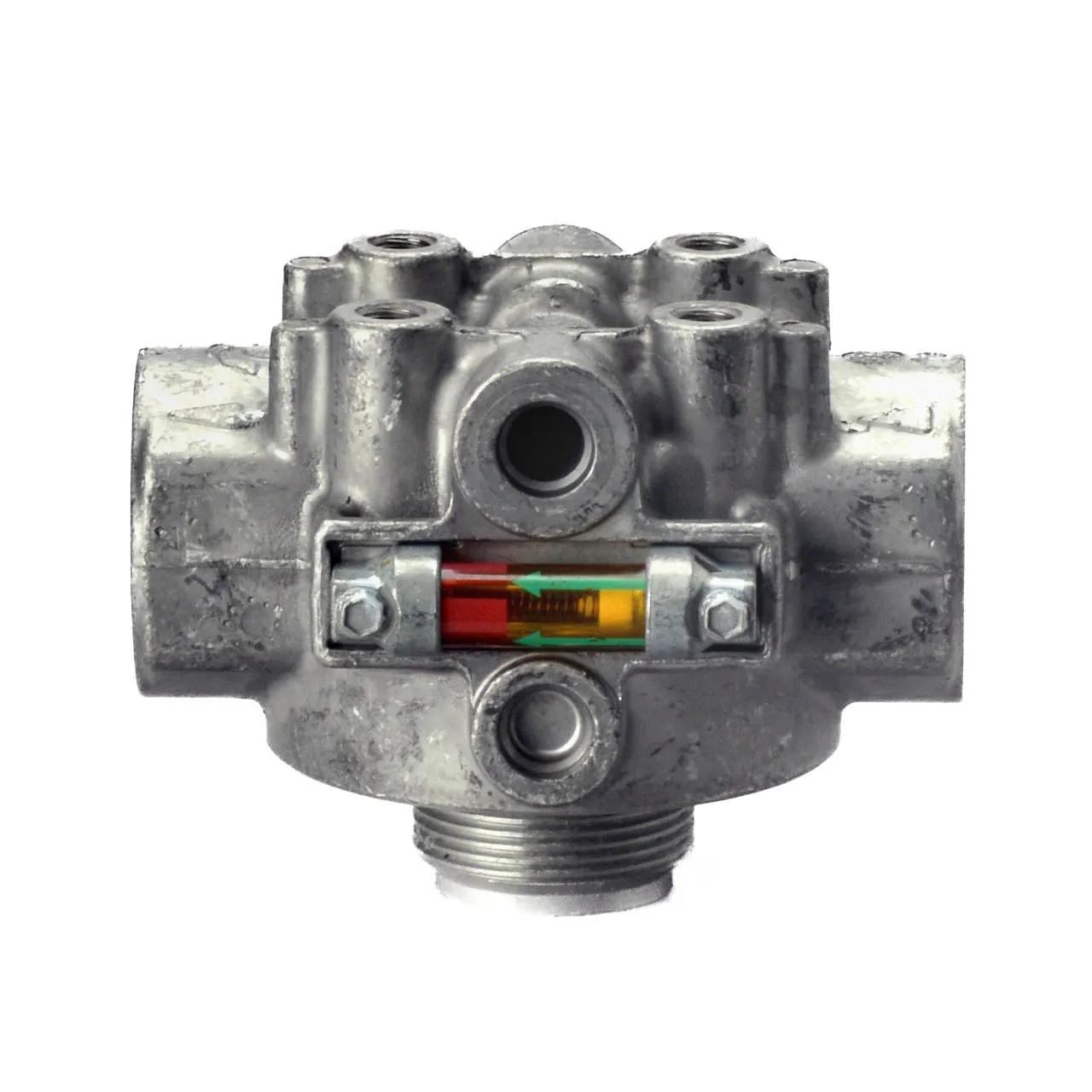

Head Assy L: 5,03 in, OD: 1 1/4-11 1/2 NPT , H: 3,79 in
#DONP167622
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Bypass Valve |
Yes |
| Bypass Valve Setting LR |
24.66 psi (1.7 bar) |
| Family |
HMK05 |
| Filter-to-Head Thread |
1 3/4-12 UN |
| Height |
3-51/64 in |
| Inlet Size |
1 1/4-11 1/2 NPT |
| Length |
5-1/32 in |
| Outer Diameter |
1 1/4-11 1/2 NPT |
| Outlet Size |
1 1/4-11 1/2 NPT |
| Series |
HMK05/25 |
| Length Range |
5 to 5.99 in |
| Construction |
Forged |
| Mount Type |
SAE B 2/4 Bolt |
| Rotation |
Bi-Directional |
| Thread |
1/4 NPT |
| OB8772 |
| WM502P33DLSB |
| 350016 |
| 45402616 |
| 3J18359 |
| DN P167622 |
| DN P167622 |
| TWD P167622 |
| 02250148384 |
| 08415007 |
| 2191-P167622 |
| DONP167622 |
| 2250148384 |
| 8415007 |
