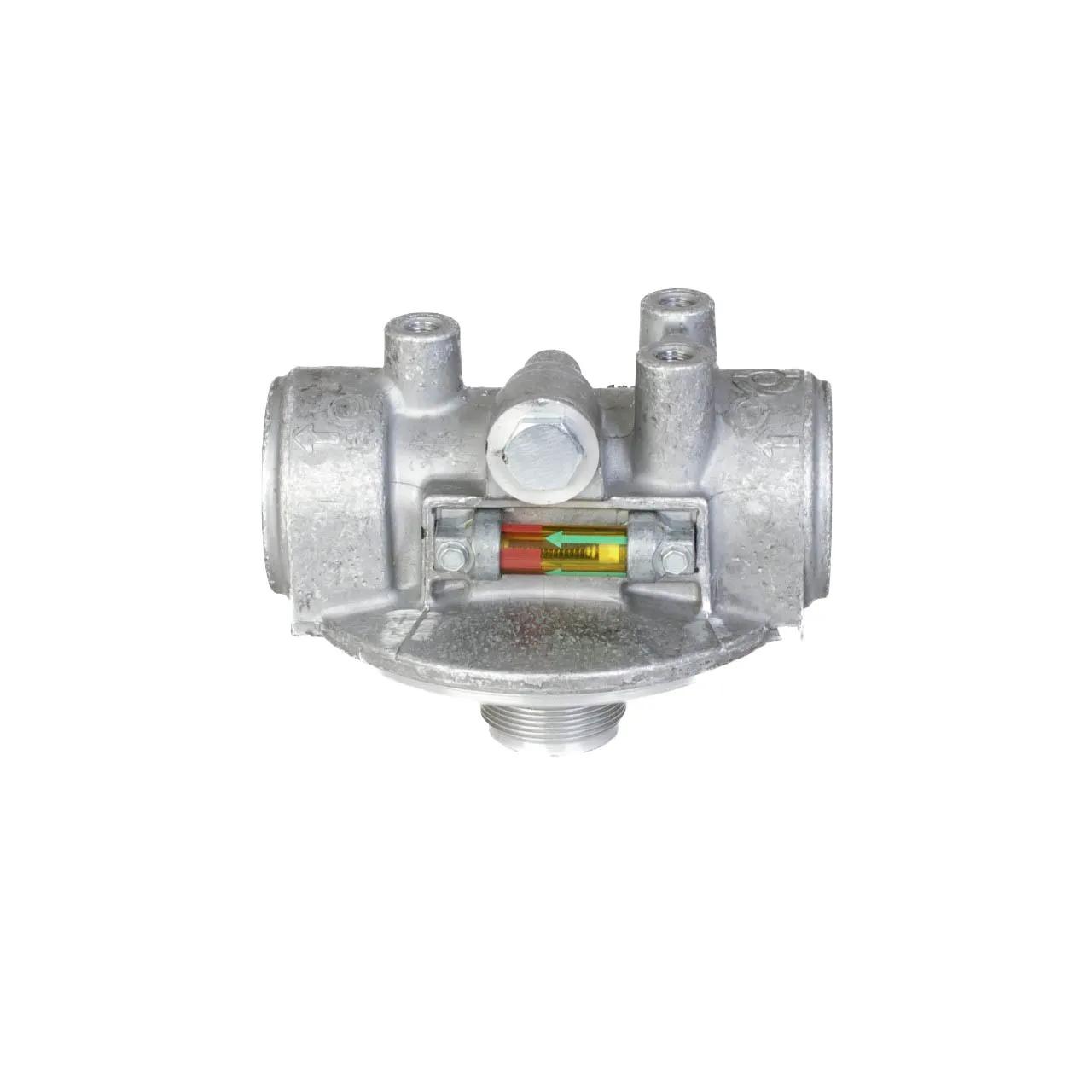

Head Assy L: 5,53 in, OD: 1 1/4-11 1/2 NPT , H: 4,41 in
#DONP172953
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 50.77 psi (3.5 bar) |
| Filter-to-Head Thread | 1 1/2-16 UN |
| Height | 4-13/32 in |
| Inlet Size | 1 1/4-11 1/2 NPT |
| Length | 5-17/32 in |
| Outer Diameter | 1 1/4-11 1/2 NPT |
| Outlet Size | 1 1/4-11 1/2 NPT |
| Series | HBK05 |
| Length Range | 5 to 5.99 in |
Interchanges & Equivalent parts:
| P172953 |
| 00660156 |
| 660156 |
