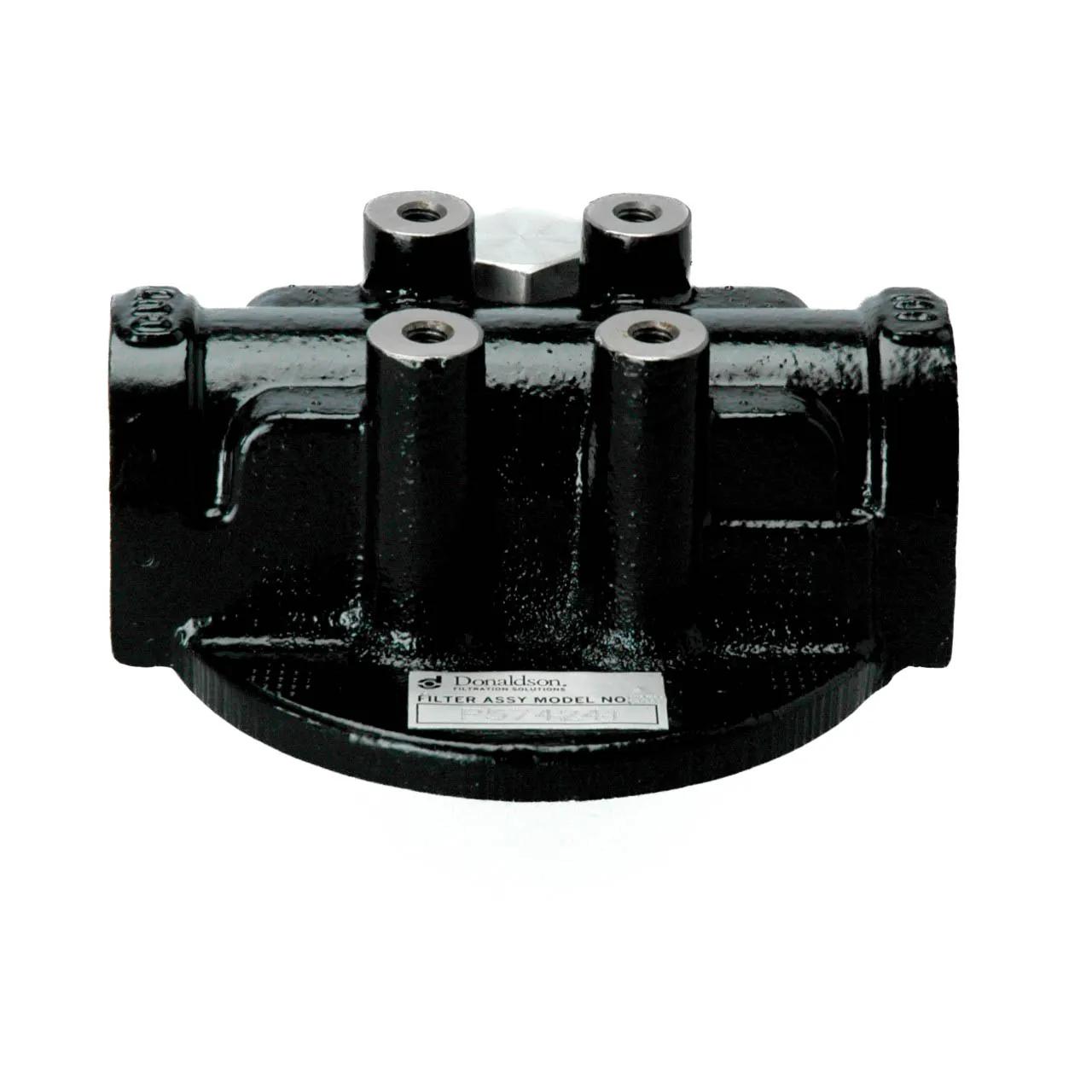

Head Assy L: 5,75 in, OD: SAE-20
#DONP574241
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Application | PARKER 936601Q |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3,5 bar |
| Inlet Diameter | 1.65 in (41.91 mm) |
| Inlet Size | SAE-20 |
| Inner Diameter | 3.35 in (85.1 mm) |
| Length | 5-3/4 in (14.61 cm) |
| Outer Diameter | SAE-20 |
| Outlet Size | SAE-20 |
| Series | W023 |
| Length Range | 5 to 6 in |
| Overall Length | 8.62 in (219 mm) |
| Bypass Valve Setting HR | 3 bar |
| Outlet Diameter | 1.22 in (31 mm) |
