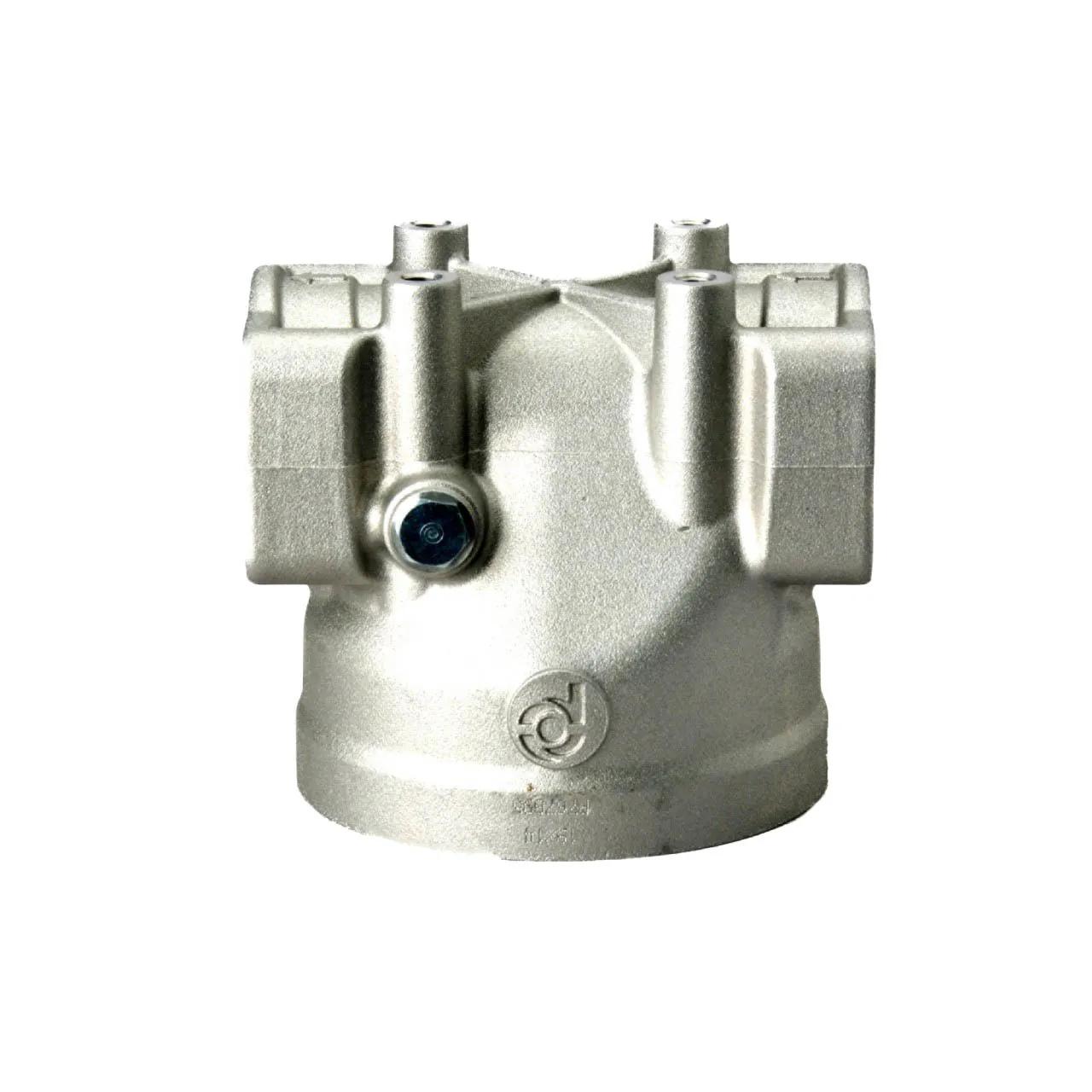

Head Assy L: 6,34 in, OD: 2 SAE 4 Bolt CDEe 61 , H: 5,71 in
#DONP767095
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
| Bypass Valve |
Yes |
| Bypass Valve Setting LR |
50.04 psi (3.45 bar) |
| Filter-to-Head Thread |
M130 x 2 |
| Height |
5-45/64 in |
| Inlet Size |
2 SAE 4 BOLT CODE 61 |
| Length |
6-11/32 in |
| Outer Diameter |
2 SAE 4 Bolt Code 61 |
| Outlet Size |
2 SAE 4 BOLT CODE 61 |
| Series |
FLK125 |
| Length Range |
6 to 6.99 in |
