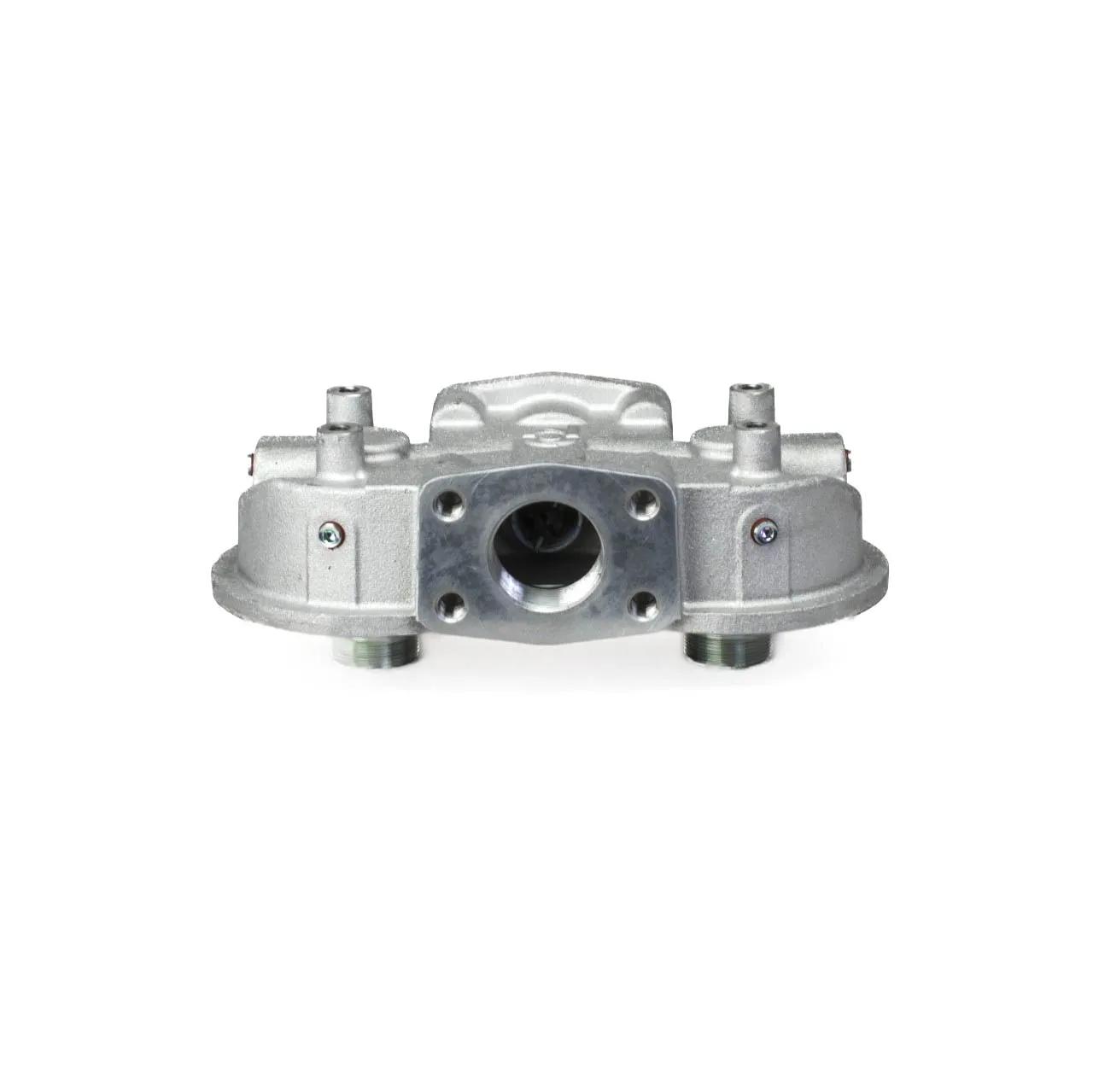

Head Assy L: 9,85 in, OD: 1 1/2 NPT , H: 3,07 in
#DONP563276
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 4.36 psi (0.3 bar) |
| Filter-to-Head Thread | 1 1/4 BSP/G & 1 1/2-16 UN |
| Height | 3.07 in (77.98 mm) |
| Inlet Size | 1 1/2 NPT |
| Length | 9.85 in (250.2 mm) |
| Outer Diameter | 1 1/2 NPT |
| Outlet Size | 1 1/2 NPT |
| Series | SP80/90 |
| Standard Length | 9 to 10 in |
| Width | 5.71 in (145.1 mm) |
