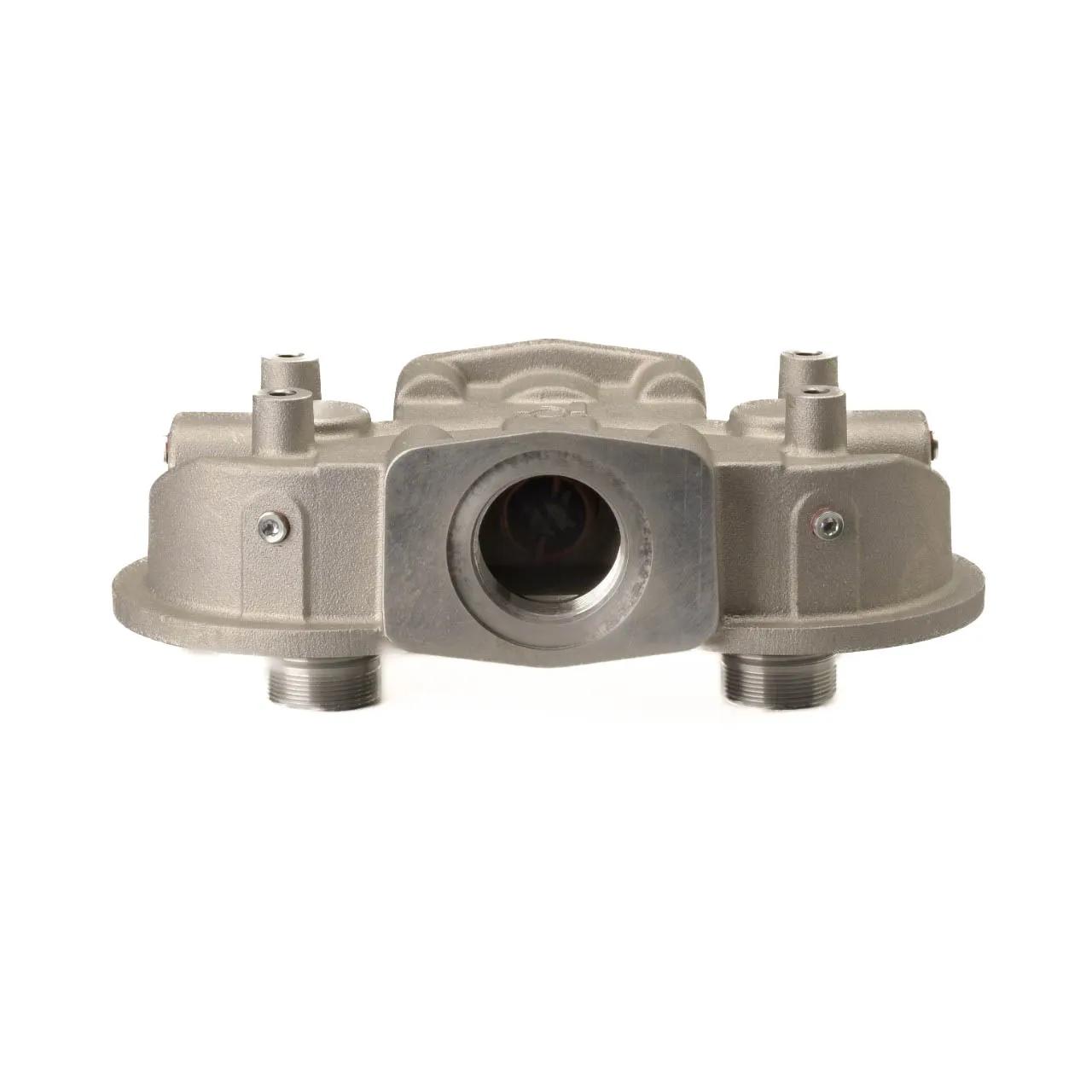

Head Assy L: 9,85 in, OD: SAE-24 , H: 5,71 in
#DONP564892
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Filter-to-Head Thread | 1 1/4 BSP/G & 1 1/2-16 UN (x2) |
| Height | 5.71 in (145.04 mm) |
| Inlet Size | SAE-24 |
| Length | 9.85 in (250.2 mm) |
| Outer Diameter | SAE-24 |
| Outlet Size | SAE-24 |
| Series | SP80/90 |
| Standard Length | 9 to 10 in |
| Width | 3.07 in (78 mm) |
