2 POINTS

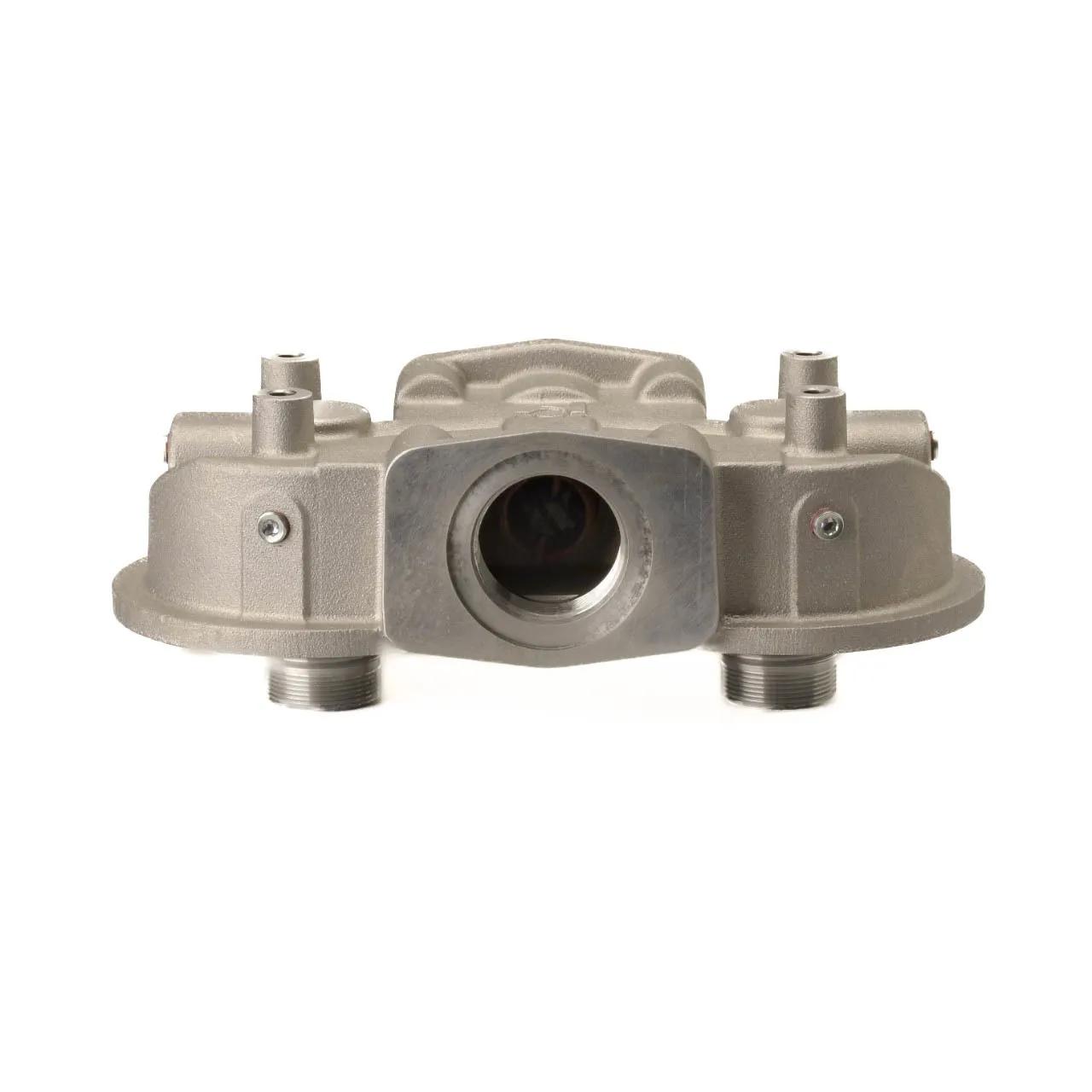

Head Assy L: 9,85 in, OD: SAE-24 , H: 5,71 in
#DONP564892
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Filter-to-Head Thread | 1 1/4 BSP/G & 1 1/2-16 UN (x2) |
| Height | 5-45/64 in |
| Inlet Size | SAE-24 |
| Length | 9-27/32 in |
| Outer Diameter | SAE-24 |
| Outlet Size | SAE-24 |
| Series | SP80/90 |
| Length Range | 9 to 9.99 in |
| Width | 3-1/16 in |
Interchanges & Equivalent parts:
| P564892 |
| DN P564892 |
| 2191-P564892 |
| DONP564892 |
