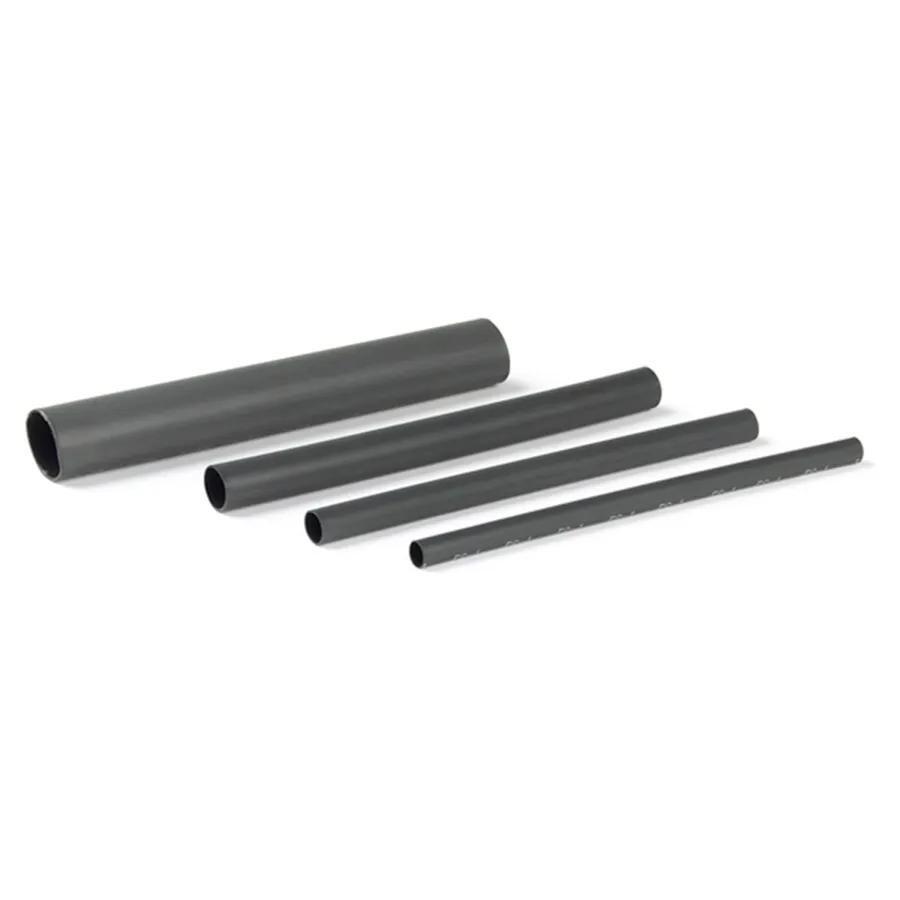

Heat Shrink Tubing, Dual Wall, Adhesive Lined, Black, 4:1 Shrink Ratio, 1/16 to 3/16 in, 48 in Length, Pk 6
Product Overview
Dual wall heat shrink tubing designed for insulating and sealing components and splices in under-the-hood environments. The outer jacket is semi-rigid, radiation cross-linked polyolefin that is flame retardant and provides strain relief and abrasion protection. The inner wall features a unique specially formulated hot-melt adhesive that forms an outstanding barrier against fluids and moisture, protecting harnesses from corrosion and water wicking. This OEM approved product meets automotive industry requirements for environmental sealing and electrical insulation, covering a wide temperature range from -40°F to 266°F (-40°C to 130°C).Heat Shrink Tubing, Dual Wall, Adhesive Lined Inner, Semi-Rigid Outer Wall, Black, Radiation Cross Linked Polyolefin, 4:1 Shrink Ratio, 1/16 to 3/16 in, UL E85381 RECONIZED, RoHS Compliant Standards, -40 to 130 °C Temperature Range, 600 V, 22-12 GA Wire Gauge, 48 in Length
Features & Benefits
- Industry leading dual wall, adhesive lined heat shrinkable tubing
- Designed for insulating and sealing components and splices for under the hood environment
- Inner wall has unique specially formulated "Hot Melt" adhesive that forms an outstanding barrier against fluids and moisture
- Shrink Ratio: 4:1
- Adhesive-lined interior creates a strong seal against moisture and fluids
- Minimum shrink temperature 110°C (230°F)
- Outer jacket is semi-rigid, radiation cross-linked polyolefin providing flame retardance, strain relief, and abrasion protection
Specifications
| Application | Insulating and sealing components and splices in under-the-hood environments |
| Color | Black |
| Length | 48 in |
| Quantity | 6 |
| Temperature Range | -40°F to 266°F (-40°C to 130°C) |
| Type | Dual Wall, 4:1 Hot Melt Heat Shrink Tubing |
| Width | 1/16 in |
| Wire Gauge | 22-12 GA |
| Inner Diameter Before Shrink | 1/16 to 3/16 in |
| Shrink Ratio | 4:1 |
| Size | 1/16 to 3/16 in |
| Standards | UL E85381 RECOGNIZED, RoHS Compliant |
| Voltage Rating | 600 V |
| Wall Type | Adhesive Lined Inner, Semi-Rigid Outer |
| Product Category | Heat Shrink Tubing |
Interchanges & Equivalent parts:
| 84500648 |
| 7376-84500648 |
| 84-5006-48GR0 |
| GRO 84 5006 48 |
| GRO84500648 |
| SG04-0148TEC |
| SG040148 |
| SG06-0148TEC |
| SG060148 |
| ZBJ84500648 |
| ZBJD84500648 |
| 8370-41 |
| 8381-41 |
| 84-5006-48 |
