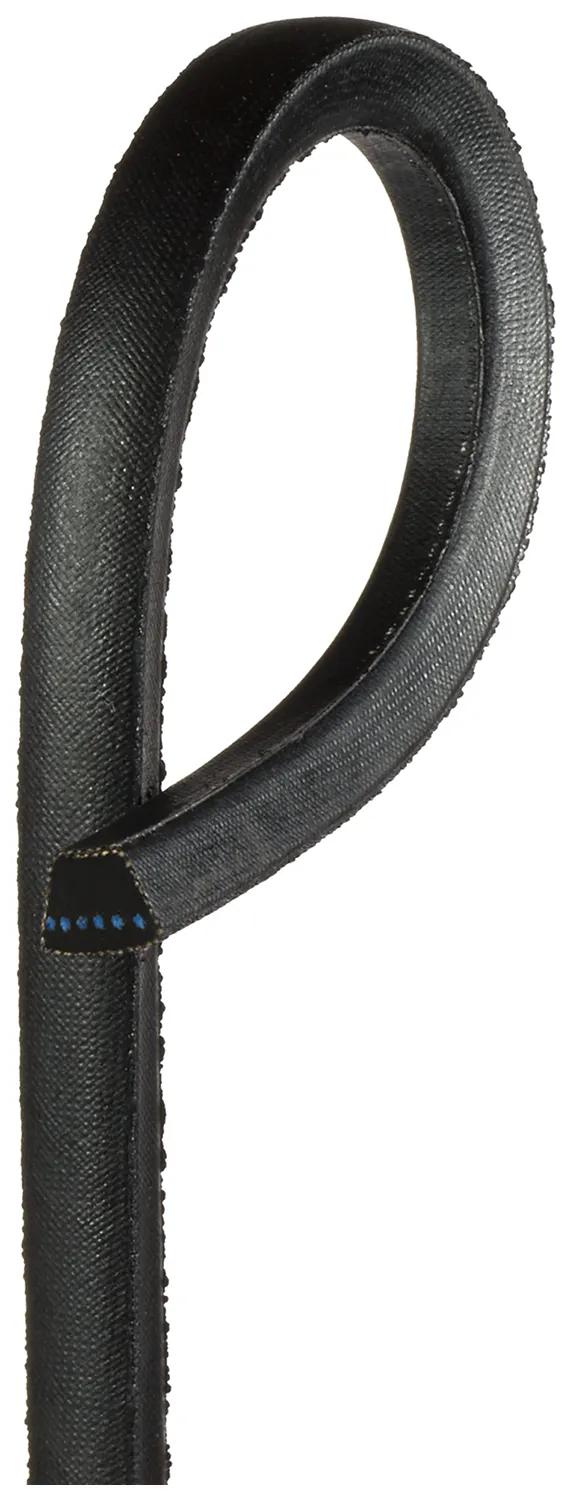

Hi-Power II Classical Section Wrapped V-Belt
#GATA21
Features & Benefits
- Meets RMA oil and heat resistant standards and static conductivity requirements
- The Flex-Weave Cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt, and heat
- Flex-Bonded Cords are strongly bound to the body of the belt, resulting in equal load distribution and absorption of bending stress without cord deterioration
- Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life
Specifications
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Construction | Wrapped |
| Length | 23 in |
| Material | Polyester |
| Notched | No |
| Number of Strands | 1 |
| Recommended Sheaves | Multi-Duty Sheaves |
| Section | A |
| Length Range | 20 to 24 in |
| Temperature Range | -30°F to 140°F (-34.4°C to 60°C) |
| Type | Classical Section Wrapped V-Belt |
| UPC | 770075425632 |
| Weight | 0.13 lb (0.06 kg) |
| Width | 1/2 in (1,27 cm) |
Interchanges & Equivalent parts:
| 90022021 |
