HI-POWER II inWERBAND BELTS
#GAT3/B61
Product Overview

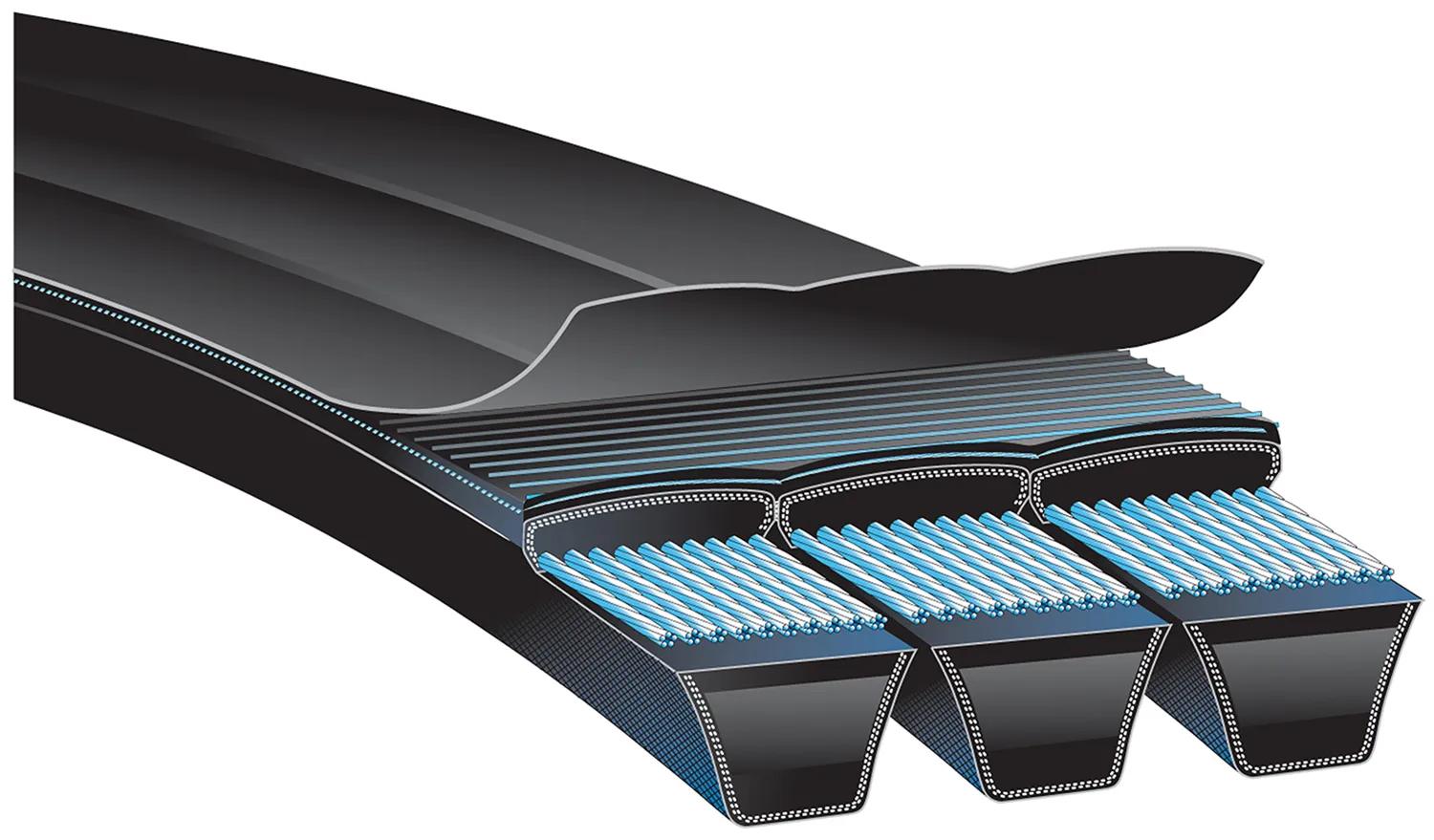

The Powerband Construction Allows Multiple Belts To Function As A Single Unit w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending Stress w/o Cord Deterioration.
- Concave Sidewalls Provide Proper Cord Support & Full Contact w/ The Sheave-Groove For Equal Loading & Uniform Wear.
- Recommended For Drives Where Single Belts Vibrate, Turn Over Or Jump Off The Drive.
- Meets RMA Static Conductivity Requirements.
Specifications
| Largeur de la courroie supérieure | 2-1/4 to 2-1/2 in (5.72 to 6.35 cm) |
| Type de courroie | Classical Section Wrapped Joined V-Belt |
| Nombre de torons | 3 |
| Section | B |
| Largeur supérieure par toron (po) | 0.66 |
| Largeur supérieure par toron (mm) | 17 mm |
| VMRS Code | 065-005-003 |
| Width | 2-1/4 in (5.72 cm) |
Interchanges & Equivalent parts:
| 3B61 |
| 3/B61 |
| RB613 |
| 90933061 |
