HI-POWER II inWERBAND BELTS
#GAT4/C105
Product Overview

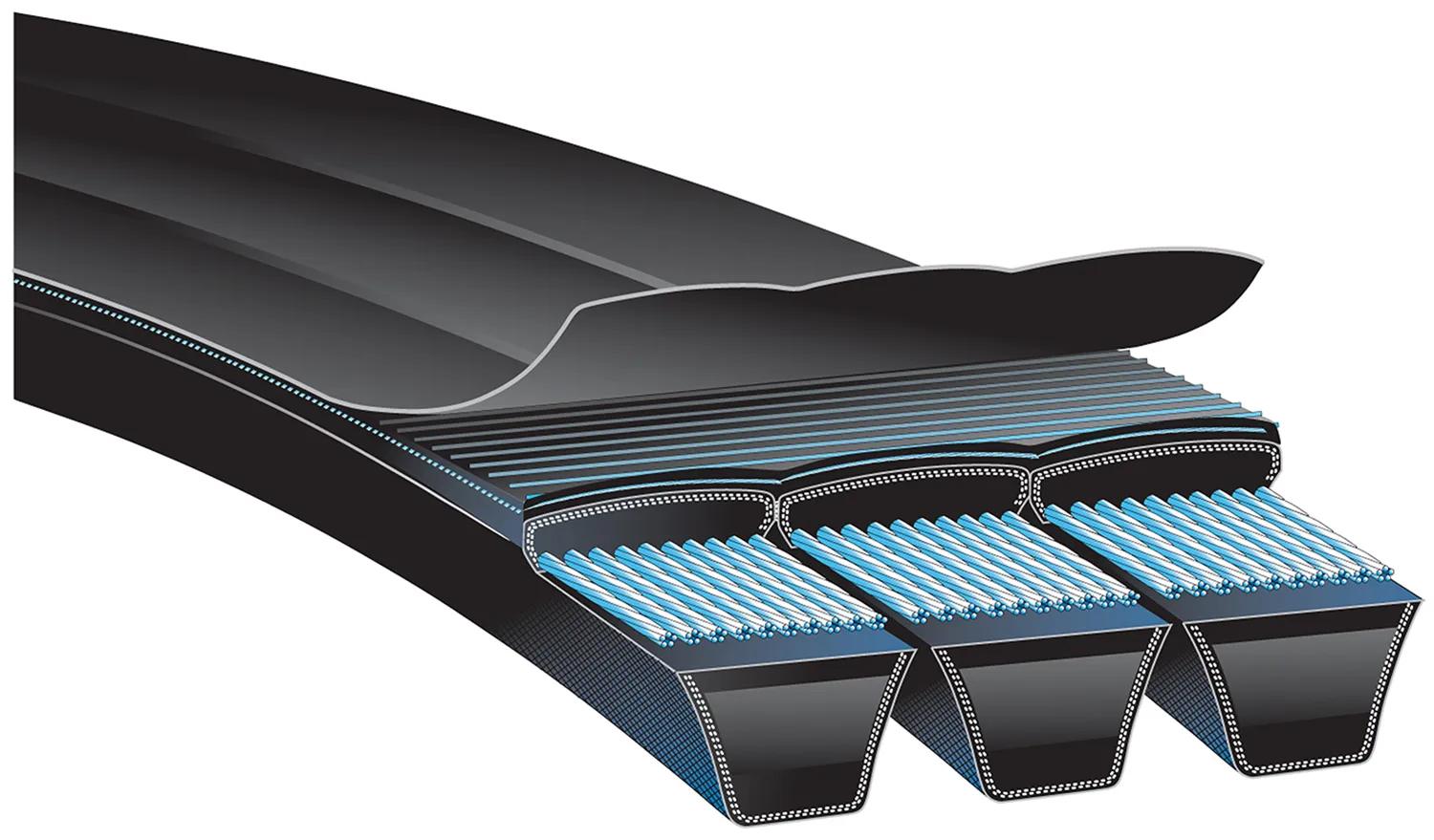

The Powerband Construction Allows Multiple Belts To Function As A Single Unit w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending Stress w/o Cord Deterioration.
- Concave Sidewalls Provide Proper Cord Support & Full Contact w/ The Sheave-Groove For Equal Loading & Uniform Wear.
- Recommended For Drives Where Single Belts Vibrate, Turn Over Or Jump Off The Drive.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | More than 3 in |
| Belt Type | Classical Section Wrapped Joined V-Belt |
| Number of Strands | 4 |
| Section | C |
| Top Width Per Strand (in) | 0.88 |
| Top Width Per Strand (mm) | 22 mm |
| VMRS Code | 065-005-003 |
| Width | 4 in (10.16 cm) |
Interchanges & Equivalent parts:
| 4C105 |
| RC1054 |
| 4/C105 |
| 90944105 |
