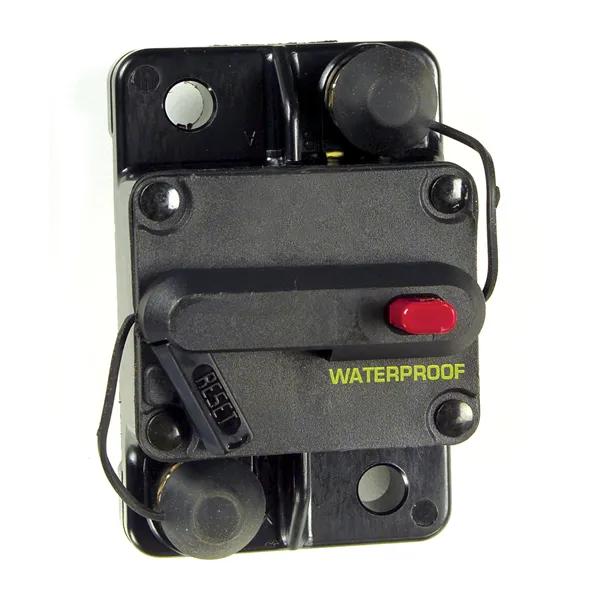

High Amperage Thermal Circuit Breaker, Type III, 100 Amp, Thermoplastic, Single Pole, Manual Reset
#GRO82-2178
Product Overview
Our high amperage thermal circuit breakers range from 40A to 200A and are designed to protect your vehicle's electrical system from overcurrent, overload, and short circuit situations. This 100 Amp model features a thermoplastic UL 94V-0 rated housing, is waterproof, and suitable for trucks, buses, RV, and marine applications.Circuit Breaker, Type III, Surface Mounting, Manual Reset, Stud Termination, Thermal Trip, Black, Thermoplastic, 100 A Current Rating, 1 Poles, -40 to 85 deg C Operating Temperature, UL Listed, SAE J1625, SAE J1171 Standards, 1/4-28 NPT Stud, 42 VDC, 1 Year Warranty, For Trucks, Buses, RV and Marine
Features & Benefits
- Surface Mount, Type III; Single Pole
- Thermoplastic; UL Rated 94V – 0 housing
- Stud insulators provided; 1/4” – 28 thread studs
- Also used as battery chargers and DC audio systems
- Can be used in auxiliary and accessory circuits; trucks, buses, RV and marine applications
- Thermoplastic
- Surface Mount, Type III
- 1/4” – 28 thread studs
- Stud insulators provided
Specifications
| Application | Trucks, Buses, RV and Marine |
| Bracket | Yes |
| Material | Thermoplastic |
| Number Of Contacts | 7 |
| Type | High Amperage Thermal Circuit Breakers |
| UPC | 621935050672 |
| Volt | 94V |
| Color | Black |
| Current Rating | 100 A |
| Mounting Type | Surface |
| Number of Poles | 1 |
| Operating Temperature | -40 to 85 deg C |
| Reset Type | Manual |
| Standards | UL Listed, SAE J1625, SAE J1171 |
| Stud Size | 1/4-28 NPT |
| Termination Type | Stud |
| Trip Type | Thermal |
| Voltage Rating | 42 VDC |
| Warranty | 1 Year |
| Product Category | Circuit Breaker |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 822178 |
| 0185100.XPA |
| 3401-31 |
| 558-80 |
| 558-80TEC |
| 559-100 |
| 7376-822178 |
| BP/CB185-100 |
| GRO822178 |
| ZBJD822178 |
| 91003100 |
| 55880 |
| 82-2178 |
| 7709331 |
| 782-1126 |
| 7822125 |
| 782-2133 |
| 782-2250 |
| 7823042 |
| 1-1874 |
| 11874C |
| 1-51104 |
| 9464 |
| 7823114 |
| 782-3114 |
| CB187F100 |
