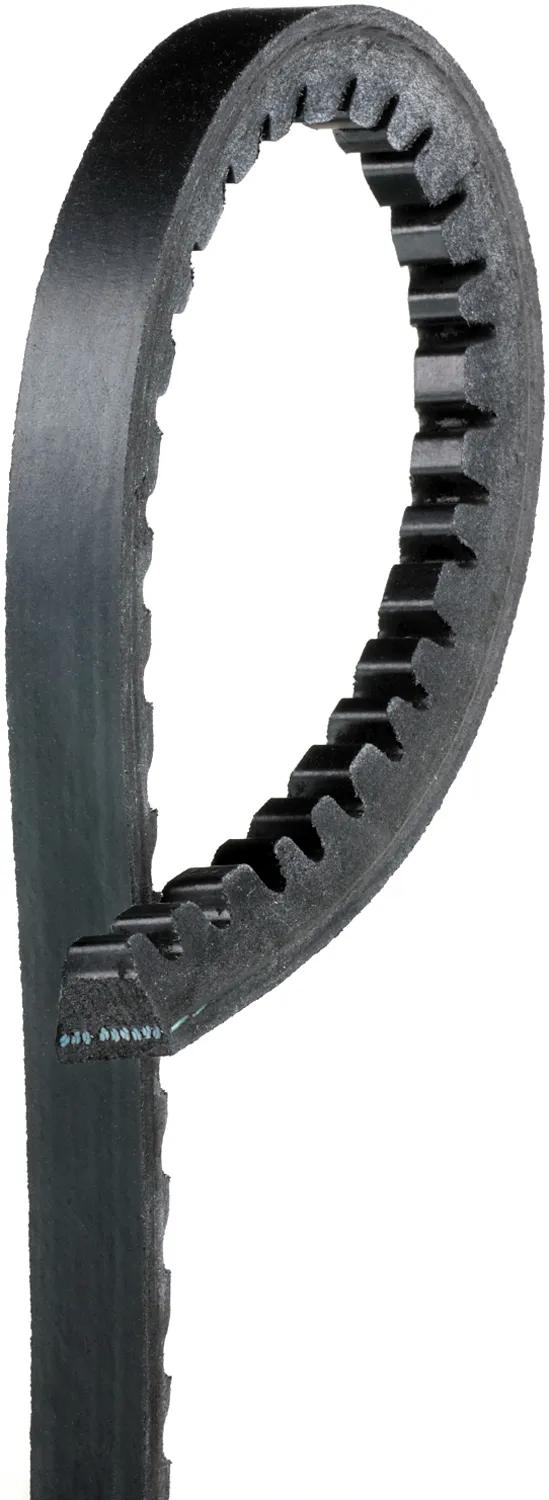

High Capacity V-Belt, L: 47.5 in, W: 13/32 in

#GAT7475

Product Overview


PRECISION = PERFORMANCE: At Gates, our products are defined by the details. That's why we've spent years perfecting our manufacturing processes to an exact science, which we use in Gates manufacturing facilities all over the world to ensure interchangeability. Our Automotive XL V-Belts are manufactured with a patented, precision V-forming process assuring exact size and angle control for optimal performance on your vehicle’s specific make and model. TURN BELT VOLUME DOWN A NOTCH: Designed with a traditional V-shaped belt profile for OE fit, our automotive experts also engineered a variable notch pattern to reduce noise and hum as the belt engages the engine sheaves.

See More
See Less

Features & Benefits


  • Thermally active tensile cords for maintenance-free performance when properly installed and tensioned.
  • Form-ground to ensure precise top width and sidewall dimensional control for proper fit to the pulley.
  • Fiber-loaded rubber stock adds flexibility along the length of the belt and provides greater lateral stability in the pulley.
  • XL Belts resist oil, heat, ozone, weather, and aging for improved belt life.
  • Meets or exceeds SAE J636C specifications.

Specifications


Angle 36 deg
Belt Top Width 3/8 to 1/2 in (0.97 to 1.27 cm)
Construction Notched
Length 48.32 in
Material Polyester
Notched Yes
# of Grooves 1
Section HC41
Length Range 45 to 49.99 in
Type High Capacity V-Belt (Standard)
Weight 0.24 lb (0.11 kg)
Width 13/32 in (1.04 cm)

Interchanges & Equivalent parts:


18-15475
15481
11502351321
1191214
11G1205
1325966
1446925991
15-475
15-481
15475AP
15475MK
1733891
1733892
GYB15481
11502233
11AV1213
15475DR
15W475L
1700881
0059977792
0951213
10024881
10478
10A1205
10AV1213
10AX1210
10AX1214
10X1225
11436933
11502103
11A1205
13-475
14-0578-4
14077871
1987947713
2051221
227703K21
227703R1
227703R11
227703R2
227703R21
227703R22
25-12064
25-12073
25-7475
255188C1
255188C11
259348
2612028
2614A050
2614A150
2658884
2D43295
3040503
3159879
3236830
3239606
329073015
3418943
3512521
359007C91
3795441
3816344
38456653
424523
424561
425381
425448
425533
425553
426599
426649
427576
427589
431450
433128
4343523
4396941
43969419
4417761
44744
4536137
4536157
47515
4753HP
49461
54731
54755
54832
55878
55963
57227
57816034
57931
58631
61665452
6587767
6588204
696613901
704449
704499
74396941
77-9739-2
7701005702
8475
9.5X1215LA
910416-1147
910416-1243
911416-1243
912416-1243
916416-1243
9433645
9433748
978544
978545
978546
A15480
A57931
AV101200LP
AV4475
