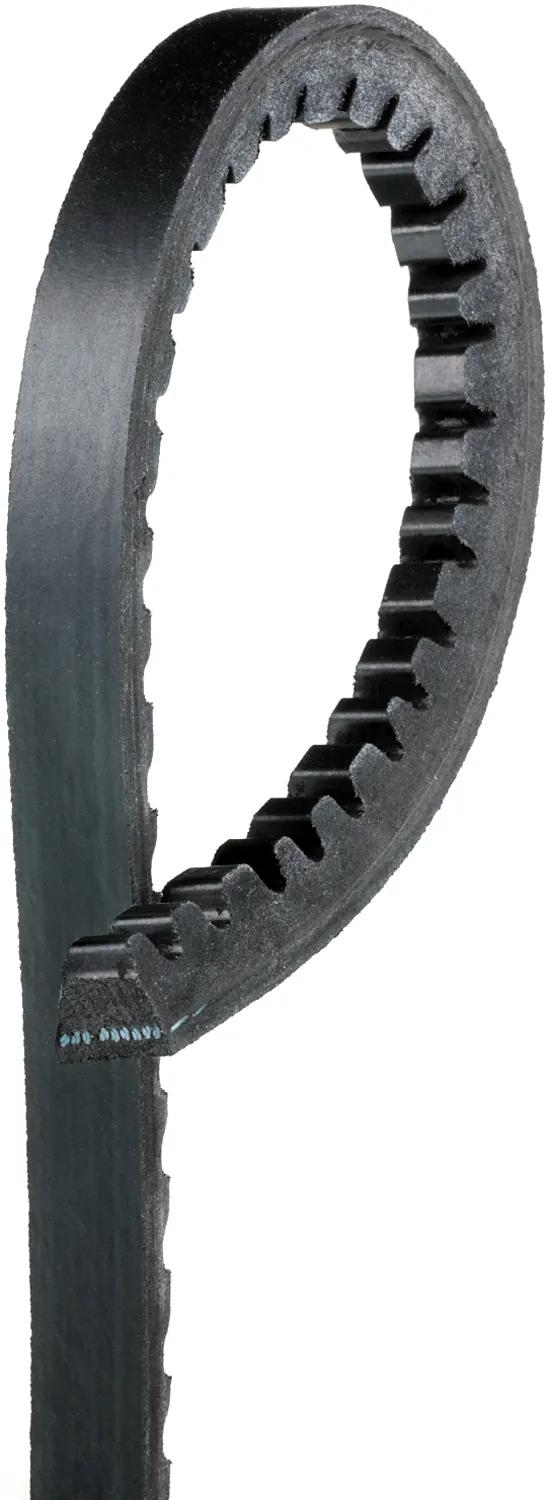

High Capacity V-Belt, L: 51.5 in, W: 13/32 in
#GAT7516
Product Overview
PRECISION = PERFORMANCE: At Gates, our products are defined by the details. That's why we've spent years perfecting our manufacturing processes to an exact science, which we use in Gates manufacturing facilities all over the world to ensure interchangeability. Our Automotive XL V-Belts are manufactured with a patented, precision V-forming process assuring exact size and angle control for optimal performance on your vehicle’s specific make and model. TURN BELT VOLUME DOWN A NOTCH: Designed with a traditional V-shaped belt profile for OE fit, our automotive experts also engineered a variable notch pattern to reduce noise and hum as the belt engages the engine sheaves.
Features & Benefits
- Thermally active tensile cords for maintenance-free performance when properly installed and tensioned.
- Form-ground to ensure precise top width and sidewall dimensional control for proper fit to the pulley.
- Fiber-loaded rubber stock adds flexibility along the length of the belt and provides greater lateral stability in the pulley.
- XL Belts resist oil, heat, ozone, weather, and aging for improved belt life.
- Meets or exceeds SAE J636C specifications.
Specifications
| Angle | 36 deg |
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 52.32 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | HC41 |
| Length Range | 50 to 54.99 in |
| Type | High Capacity V-Belt (Standard) |
| Weight | 0.25 lb (0.11 kg) |
| Width | 13/32 in (1.04 cm) |
Interchanges & Equivalent parts:
| 03-02-705-8 |
| 10A26150 |
| 10AX1310 |
| 1190688 |
| 0400216 |
| 10-02005 |
| 10A1310 |
| 11502113 |
| 1185534 |
| 11502243 |
| 11A1310 |
| 11G1310 |
| 1229823 |
| 12625 |
| 126A |
| 13-516 |
| 13515 |
| 13668824 |
| 1368824 |
| 13G515 |
| 14-0543-6 |
| 141-0984 |
| 1486754 |
| 15-515 |
| 15-522 |
| 1535 |
| 15515 |
| 15515DR |
| 15515MK |
| 15516 |
| 15521 |
| 1559598 |
| 1568211 |
| 1606144 |
| 1610213 |
| 1700344 |
| 18-15515 |
| 1885534 |
| 1901940 |
| 1929418 |
| 2028B89H24 |
| 212568 |
| 2211 |
| 25-13054 |
| 25-13103 |
| 25-7516 |
| 2515 |
| 2614A058 |
| 2614A158 |
| 2658775 |
| 2720EA 8620 B |
| 2806792 |
| 2806793 |
| 2843273 |
| 2D43301 |
| 2X101190 |
| 3040507 |
| 3229699 |
| 329650 |
| 3351002 |
| 3393311 |
| 3570440 |
| 3919816 |
| 395884 |
| 399598 |
| 400004615 |
| 400004627 |
| 401-7516 |
| 4041407 |
| 406084 |
| 41292B |
| 421276 |
| 422768 |
| 422833 |
| 423428 |
| 423463 |
| 423512 |
| 423551 |
| 423707 |
| 424308 |
| 424773 |
| 425957 |
| 426307 |
| 426489 |
| 429668 |
| 45305 |
| 460004615 |
| 46262 |
| 473361 |
| 4747-9 |
| 47779 |
| 4806 |
| 483781 |
| 48996 |
| 49659 |
| 55763 |
| 55833 |
| 55856 |
| 56354 |
| 56380 |
| 570440 |
| 570440C |
| 58844 |
| 59131 |
| 59785 |
| 620449 |
| 6262852 |
| 653922 |
| 667299 |
| 6686655 |
| 6687766 |
| 706168 |
| 77-9207-0 |
| 77-9747-5 |
| 7711064457 |
| 7L5091 |
| 8211 |
| 8BA 8620 B |
| 8CM 8620 B |
| 9.5X1310LA |
| 9116201 |
| 92023486 |
| 9433653 |
| 9433756 |
| 95X1310 |
| 966926 |
| 966943 |
| 966991 |
| 96706 |
