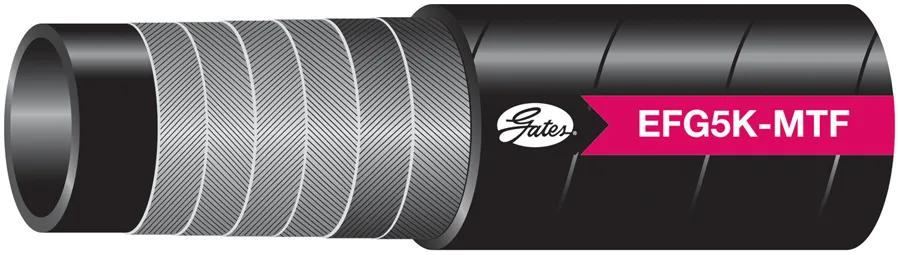

Hose, 4-Spiral, Wire Reinforcement, Black, MegaTuff Cover, Nitrile - Type C Tube
#GAT70875
Product Overview
EFG5K hose is recommended for extremely high pressure and high impulse hydraulic applications. EFG5K is designed to meet or exceed all requirements of ISO 3862 R13 specifications and performance requirements of EN 856 4SP (-10 to -32) and EN 856 4SH (-20 to -32). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil, as well as standard petroleum-based fluids.Hose, 4-Spiral, Wire Reinforcement, Black, MegaTuff Cover, Nitrile - Type C Tube, 152.4 mm Bend Radius, 5000 psi Burst Pressure, 1 in ID, 38.9 mm OD, EN 856 4SP/4SH, EN 856 R13, ISO 3862 R13, SAE 100R13, -40 to 250 °F, Working Pressure: 5000 psi, 30 m Length, For GlobalSpiral™ Couplings (G20 Series), Stainless Steel Spiral Couplings (G18 Series)
Features & Benefits
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose
- Available in 121 ft through 200 ft continuous lengths
- For use with GlobalSpiral™ couplings (G20 series), GlobalSpiral™ max (G23 and G24 series) and stainless steel spiral couplings (G18 series)
- Superior flex impulse performance: tested to 1000000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32)
- Meets flame resistance acceptance designation MSHA 2G
