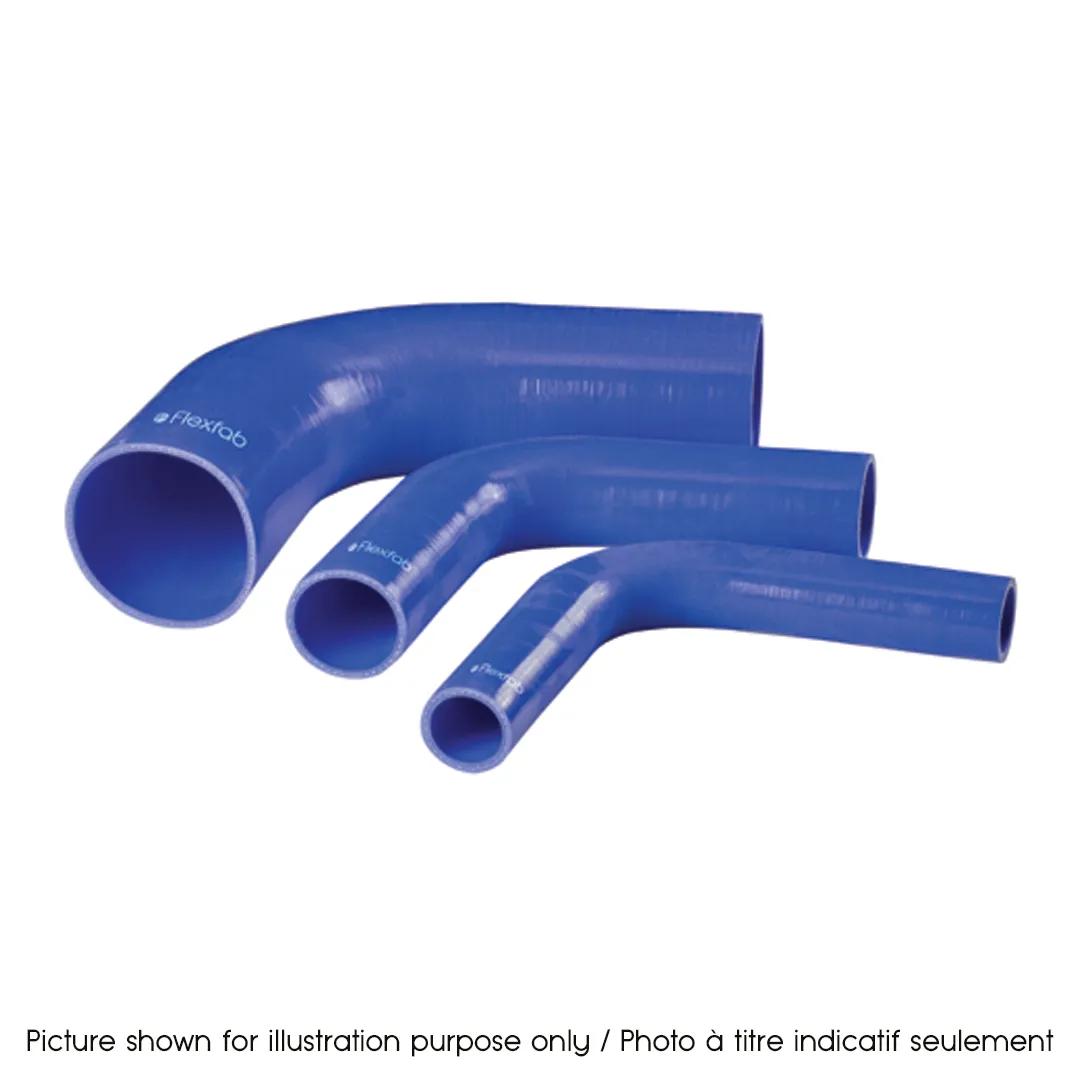

Hose Elbow, 2-1/2 in ID, 90 deg, Blue Silicone with Meta-Aramid Reinforcement
#FLX7884-250
Product Overview
90-degree silicone hose elbows are engineered for coolant and charge air connector systems, designed to withstand extreme duty cycles in hostile engine environments. Constructed with a low dilation design to prevent expansion, these elbows offer reliable performance under high temperature and pressure conditions.Hose Elbow, Blue, Silicone with Meta-Aramid Reinforcement, 90 deg Angle, 3-3/4 in Bend Radius, 3-Ply Construction, 2-1/2 in ID, 150 psi Minimum Burst Pressure, 2.82 in OD, SAE J20 R1 Class A, TMC RP303B Class I Grade II Standards, -65 to 500 °F Temperature Range, 6-1/2 in Length, For Coolant and Charge Air Connector Systems
Features & Benefits
- Can be used as a coolant hose
- Temperature range is -65 Degrees F (-54 Degrees C) to +500 Degrees F (+260 Degrees C)
- Extreme temperature resistance
- Extreme duty cycle tested for hostile engine environments
- Low dilation design
- Prevents expansion
- Engineered for coolant and charge air connector systems
- Meets or exceeds the operating requirements of SAE J20 R1 Class A
- Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
- Standard wall thickness is 0.140 in / 0.190 in
- Working pressure is 1/3 of the burst pressure
Specifications
| Angle | 90 deg |
| Application | Ideal for extreme temperature and various pressure ranges where high performance levels are required. Suitable for coolant and charge air connector systems. |
| Color | Blue |
| Construction | 3-Ply |
| Fits Clamp Part # | FLX2582-0040 or FLX2584-0312 |
| Inside Diameter | 2-1/2 in |
| Length | 6-1/2 in |
| Outside Diameter | 2.82 in |
| Radius | 3-3/4 in (9.53 cm) |
| Temperature Range | -65 to 500 °F (-54 to 260 °C) |
| Weight | 1 lb (0.45 kg) |
| Bend Radius | 3-3/4 in |
| Minimum Burst Pressure | 150 psi (10.34 bar) |
| Standards | SAE J20 R1 Class A, TMC RP303B Class I Grade II |
| Product Category | Hose Elbow |
Interchanges & Equivalent parts:
| 7884-0250D |
| 7884-250 |
| FLX7884-0250D |
