Hub Assembly, Drive, Preset, Drum Brake, Iron Hub, Stud: M22 X 1.5 mm X 3-51/64 in
#CON10082223
Product Overview

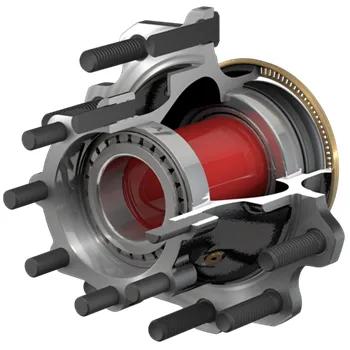

Hub Assembly, Preset, Drum Brake, Iron Hub, Aluminum Wheel, 8.78 in Pilot Dia, Drive Position, 3/4-10 UNC Stud, ABS Tone Ring Includes
Specifications
| Axle Code | R |
| Axle Stud Size (in.) | 3/4-10 UNC - R.H. |
| Brake Type | Drum |
| Flange Offset | 11/32 in |
| Hub Rating (lb) | 13000 lbs (5910 kg) |
| Inner Bearing Cup Number | 429 |
| Outer Bearing Cup Number | 430 |
| Position | Drive |
| Stud Length | 3-51/64 in |
| Type | Preset |
| Weight (lbs) | 60.8 lbs (27.58 kg) |
| Wheel Stud Thread Size | M22 X 1.5 mm |
| Bolt Circle Diameter | 11-1/4 in |
| Hub Material | Iron |
| Includes | ABS Tone Ring |
| Pilot Diameter | 8.78 in |
| Stud Size | M22 X 1.5 mm |
| Wheel Material | Aluminum |
| Product Category | Hub Assembly |
