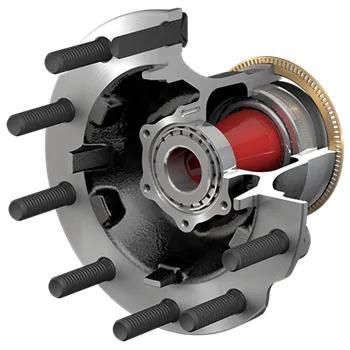

Hub Assembly, Front, Preset, Drum Brake, Iron Hub, Stud: M22 X 1.5 mm X 3-17/64 in
#CON10082211
Product Overview
When it comes to outfitting your truck with a wheel hub that's going to stand the test of time, trust Consolidated Metco PreSet wheel hubs to give you the best quality and performance.Hub Assembly, Preset, Drum Brake, Iron Hub, Aluminum Wheel, 8.78 in Pilot Dia, Front Position, ABS Tone Ring Includes
Features & Benefits
- Easier installation and maintenance than conventional assemblies
- Stamped ABS ring
- For FF front applications
- Stamped ABS ring
Specifications
| Axle Code | FF |
| Brake Type | Drum |
| Flange Offset | 4-19/64 in |
| Hub Rating (lb) | 7350 lbs (3341 kg) |
| Inner Bearing Cup Number | 427 |
| Outer Bearing Cup Number | 428 |
| Position | Front |
| Type | Preset |
| Weight (lbs) | 52.9 lbs (24 kg) |
| Bolt Circle Diameter | 11-1/4 in |
| Hub Material | Iron |
| Includes | ABS Tone Ring |
| Length | 3-17/64 in |
| Mounting | FF front |
| Pilot Diameter | 8.78 in |
| Stud Count | 10 |
| Stud Size | M22 X 1.5 mm |
| Wheel Material | Aluminum |
| Product Category | Hub Assembly |
Interchanges & Equivalent parts:
| 10082211 |
