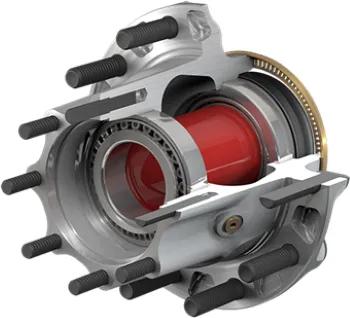

Hub Assembly, PreSet, Drive, Aluminum, M22 x 1.5 mm Stud, 3-19/32 in Stud Length
#CON10082216
Product Overview
When it comes to outfitting your truck with a wheel hub that's going to stand the test of time, trust Consolidated Metco PreSet wheel hubs to give you the best quality and performance.Hub Assembly, Preset, Drum Brake, Aluminum Hub, Steel Wheel, 8.78 in Pilot Dia, Drive Position, 5/8-11 UNC Stud, ABS Tone Ring Includes
Features & Benefits
- Easier installation and maintenance than conventional hub assemblies
- Stamped ABS ring
- For R Drive applications
- Stamped ABS ring
Specifications
| Axle Code | R |
| Axle Stud Size (in.) | 5/8-18 UNC - R.H. |
| Brake Type | Drum |
| Flange Offset | 1-5/16 in |
| Hub Rating (lb) | 11500 lbs (5228 kg) |
| Inner Bearing Cup Number | 429 |
| Material | Aluminum |
| Outer Bearing Cup Number | 430 |
| Position | Drive |
| Stud Length | 3-19/32 in |
| Type | PreSet |
| Weight (lbs) | 49.6 lbs (22.5 kg) |
| Application | Truck |
| Bolt Circle Diameter | 11-1/4 in |
| Hub Material | Aluminum |
| Includes | ABS Tone Ring |
| Mounting | Hub Piloted - 10 Studs |
| Pilot Diameter | 8.78 in |
| Stud Count | 10 |
| Stud Size | M22 X 1.5 mm |
| Wheel Material | Steel |
| Product Category | Hub Assembly |
Interchanges & Equivalent parts:
| 10004026 |
| 10005578 |
| 10005581 |
| 10020295 |
| 10020297 |
| 10082218 |
| 453-0173 |
| 85150207 |
| CM 10082216 |
| CM 10082216 |
| CM10082216 |
| 10082216 |
