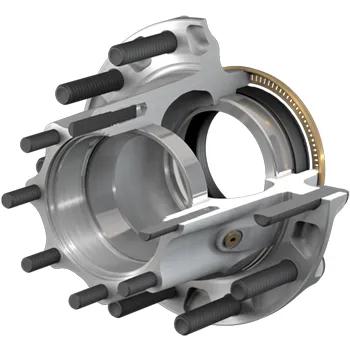

Hub Assy, Drive, Stud: M22 X 1.5 mm X 3-19/32 in

#CON10083799

Specifications

ABS	Yes
Axle Code	R
Axle Stud Size (in.)	3/4-10 UNC - R.H.
Fill Plug	Yes
Fill Hole	9/16-18 UNF - #6 SAE J1926
Flange Offset	1-5/16 in
Hub Rating (lb)	11500 lbs
Inner Bearing Cup Number	592A PS
Material	Aluminum
Mounting	Hub Piloted - 10 Studs
Position	Truck
Stud Length	3-19/32 in
Weight (lbs)	42 lbs
Wheel Stud Bolt Circle Diameter	11-1/4 in
Wheel Stud Standout (in.)	3-13/16 in
Wheel Stud	10001331
Wheel Stud Thread Size	M22 X 1.5 mm
