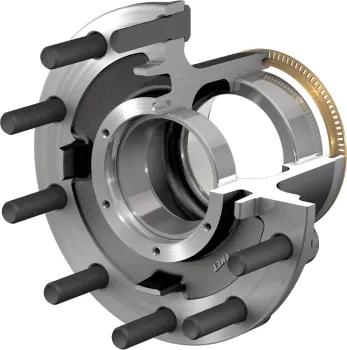

Hub Assy, Front, Stud: M22 X 1.5 mm X 3-13/16 in
#CON10083793
Specifications
| ABS | Yes |
| Axle Code | FL |
| Casting # | 10005561 |
| Fill Plug | No |
| Flange Offset | 1-5/16 in (10.92 cm) |
| Hub cap Bolt Circle Diameter (in.) | 5-9/16 in (14.14 cm) |
| Hub Rating (lb) | 11500 lbs (5228 kg) |
| Inner Bearing Cup Number | 6420 PS |
| Material | Iron |
| Mounting | Hub Piloted - 10 Studs |
| Position | Truck |
| Stud Length | 3-13/16 in (9.68 cm) |
| Weight (lbs) | 64.6 lbs (29.3 kg) |
| Wheel Stud Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Wheel Stud Standout (in.) | 3-19/64 in (8.38 cm) |
| Wheel Stud | 10005301 |
| Wheel Stud Thread Size | M22 X 1.5 mm |
