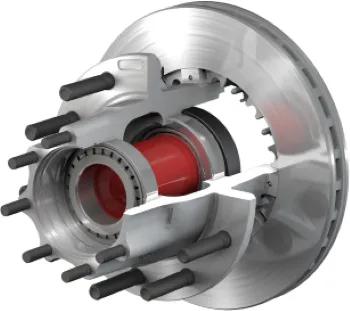

Hub & Rotor Assembly, Drive, Preset, Aluminum, M22 X 1.5 mm x 3-5/8 in Studs, Disc Brake
#CON10084931
Product Overview
Hub and Rotor Assembly, Preset, Disc Brake, Splined Rotor, Aluminum Hub, Aluminum Wheel, Drive Position, 5/8-11 UNC Stud, ABS Tone Ring Includes
Specifications
| Axle Code | R |
| Axle Stud Size (in.) | 5/8-18 UNC - R.H. |
| Bolt Hole (Number) | 10 |
| Flange Offset | 1-13/16 in (4.61 cm) |
| Hub Rating (lb) | 11500 lbs (5228 kg) |
| Inner Bearing Cup Number | 429 |
| Material | Aluminum |
| Outer Bearing Cup Number | 430 |
| Position | Truck |
| Stud Length | 3-5/8 in (9.22 cm) |
| Weight (lbs) | 123 lbs (55.79 kg) |
| Wheel Stud Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Wheel Stud Thread Size | M22 X 1.5 mm |
Interchanges & Equivalent parts:
| CM10084931 |
| 10025558 |
