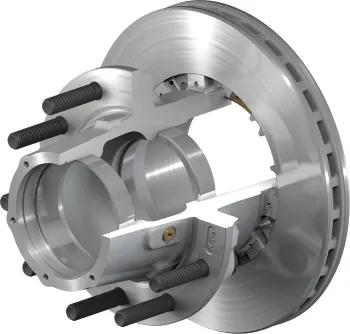

Hub & Rotor Assembly, Trailer, Disc Brake, Stud: M22 X 1.5 mm x 2-23/32 in
#CON10083511
Product Overview
Hub and Rotor Assembly, Disc Brake, Splined Rotor, Parallel Spindle, Aluminum Hub, Steel Wheel, Trailer Position, ABS Tone Ring Includes
Specifications
| Axle Code | TP |
| Bolt Circle Diameter | 11-1/4 in |
| Brake Type | Disc |
| Flange Offset | 51/64 in |
| Hub Rating (lb) | 12500 lbs |
| Inner Bearing Cup Number | HM518410 |
| Position | Trailer |
| Stud Length | 2-23/32 in |
| Weight (lbs) | 108 lbs |
| Hub Material | Aluminum |
| Includes | ABS Tone Ring |
| Mounting Type | Hub Piloted - 10 Studs |
| Number of Holes | 10 |
| Rotor Type | Splined |
| Spindle Type | Parallel |
| Stud Count | 10 |
| Stud Size | M22 X 1.5 mm |
| Type | Hub & Rotor Assembly |
| Wheel Material | Steel |
| Product Category | Hub and Rotor Assembly |
