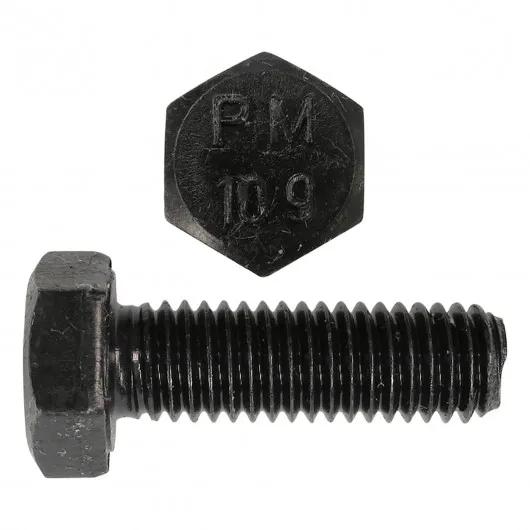

HX HD CAP SC 10.9 P933 M6X20
#PAP612-272
Product Overview
Metric Hex Head Bolts are used to secure an object within or against another object. Bare Metal Fasteners have no corrosion resistant qualities and are a good choice for indoor and industrial applications. Property Class: 10.9. Tensile strength 1040 MPa or about 150,000 p.s.i., similar to SAE Grade 8. Head marking 10.9. Made from alloy steel, quenched and tempered. Used in construction, Machinery, automotive repair and other projects by contractors, designers, OEMs, and maintenance staff for critical joints and high stress applications.
Specifications
| Finish | Bare Metal |
| Full or Partial Thread | Full Thread |
| Grade | 10.9 |
| Head Type | Hex |
| Imperial Or Metric | Metric |
| Length | 25/32 in (1.98 cm) |
| Material | High Carbon Steel |
| Threads per Inch | 1 |
| Pieces Per Package | 100 |
| Product Class | Cap Screws |
| Product group | Bolts |
| Length Range | Less than 1 in |
| Thread Size | M6 |
| Thread Type | UNC (Unified National Coarse) |
| Type | Hex Head Bolts - Metric |
Interchanges & Equivalent parts:
| 612-272 |
