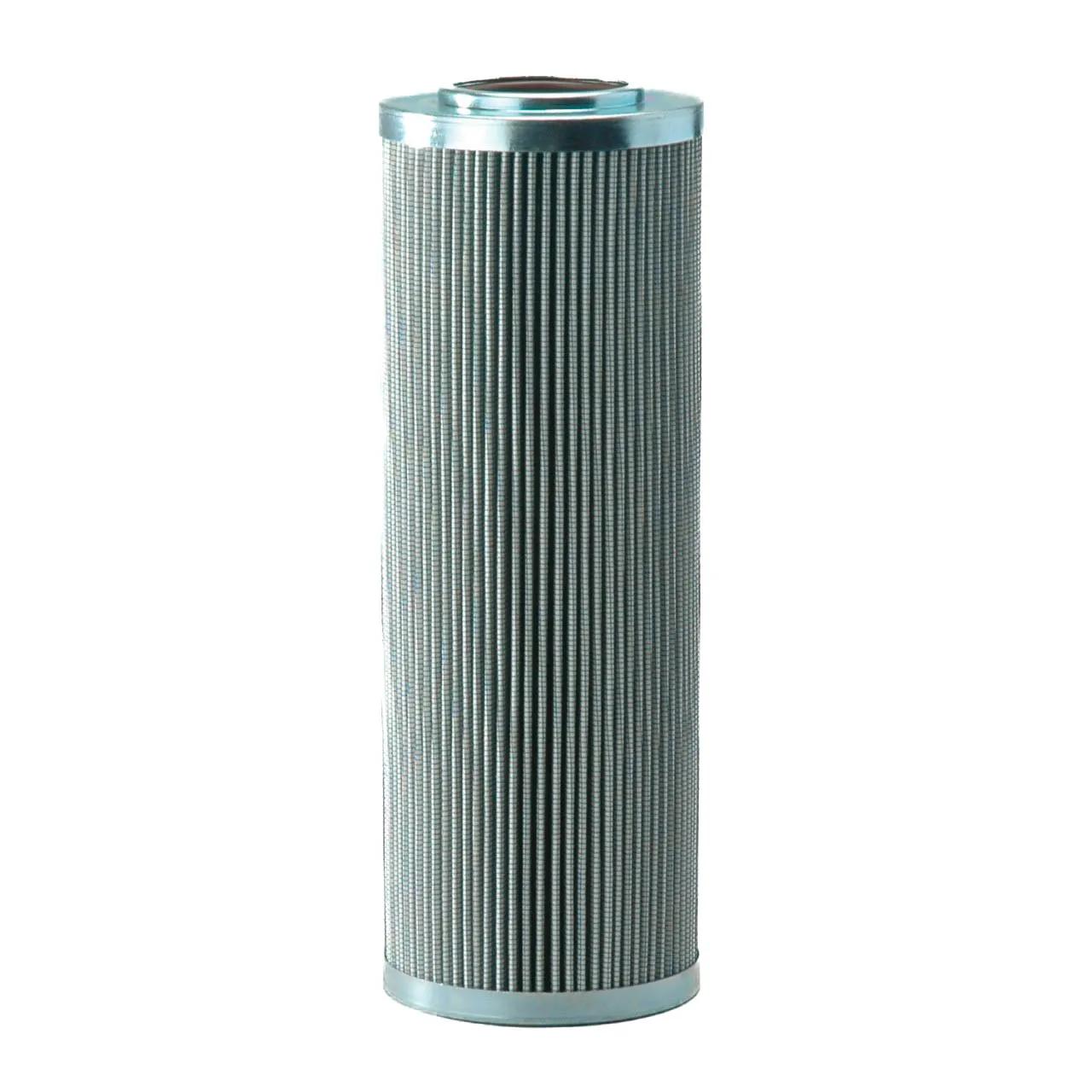

Hydraulic, Cartridge L: 10,04 in, OD: 3,56 in, ID: 1,9 in
#DONP568715
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 1.9 in (48.3 mm) |
| Length | 10-3/64 in (25.53 cm) |
| Outer Diameter | 3-9/16 in (9.04 cm) |
| Overall Length | 10.04 in (255.1 mm) |
| Length Range | 10 to 10.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP33DNL1012MB |
| HP33DNL1012MV |
| P568715 |
| PT23089MPG |
| DT0500D14UM |
| 9500H10SLA000P |
| 9500H10XLA000P |
| 9500LAH10SLA000P |
| 9500LAH10XLA000P |
| DHD500G10B |
| DHD500G10V |
| FC7272F010VS |
| 0500D010BN3HC |
| 0500D010BN4HC |
| 1251469 |
| 0500D010BN3HCV |
| 0500D010BN4HCV |
| 0500D010BNHCV |
| 0500D010ONV |
| MP4170 |
| HC2233FDS10H |
| HC2233FMS10H |
| FC7272Q010VS |
| SBF0500DZ10V |
| SE130E10B |
| SE130G10B |
| 15201012V |
| D43B10EV |
| D43B10GV |
| 9500H10XLA000M |
| 9500LAH10XLA000M |
| BE33DNL1012MV |
| HC2233FKS10H |
| HC2233FKS10Z |
| HC2233FCS10H |
| H0500D012EV |
| HY13116 |
| HC2233FRS10H |
| HC2233FCS10Z |
| HC2233FHS10H |
| HC2233FHS10Z |
| 0500 D010 BN3HC |
| 803400693 |
| 020500D10VG30HCEV |
| 020500D10VG30HCEP |
| 306232 |
