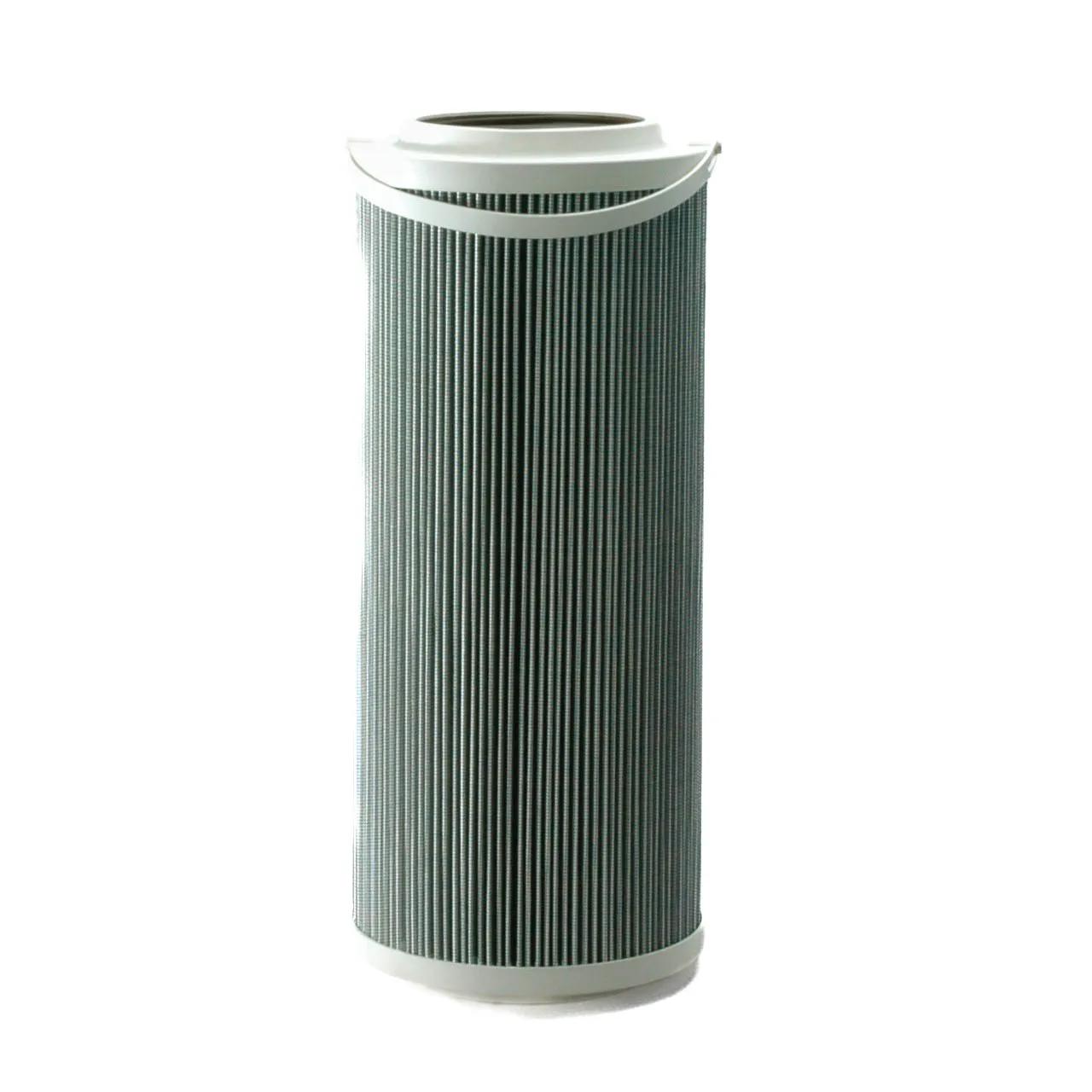

Hydraulic, Cartridge L: 10,71 in, OD: 6 in, ID: 3,77 in
#DONP566259
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 6 to 6.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 3.77 in (95.8 mm) |
| Length | 10-45/64 in (27.18 cm) |
| Outer Diameter | 6 in (15.24 cm) |
| Overall Length | 10.69 in (271.6 mm) |
| Length Range | 10 to 10.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP8314L133MB |
| HP8314L133MV |
| P566259 |
| DT8314135UM |
| C431G03 |
| 11913D03BNV |
| MP5234 |
| HC2119FDP13Z |
| HC8314FDP13HX321 |
| HC2119FMP13Z |
| HC8314FMP13H |
| HC8314FMP13HX321 |
| HC8314FKP13HX321 |
| 8315133UM |
| 15041303V |
| BE8314L133MV |
| HC8314FDP13H |
| HC8314FDP13Z |
| HC8314FKP13H |
| HC8314FKP13Z |
| HC8314FUP13H |
| HC8314FUP13Z |
| HC8314FCP13H |
| HC8314FCP13Z |
| HC2119FCP13Z |
| HC2119FKP13Z |
| HC8314FMP13Z |
| PC83130GFV |
| HC8314FRP13Z |
| HC8314FRP13H |
| HC2119FHP13Z |
| HC8314FHP13H |
| HC8314FHP13HX321 |
| HC8314FHP13Z |
| KMP8314AKF13B |
| KMP8314AKF13V |
| HC8314FCP13HX321 |
| HP8313MAVL |
