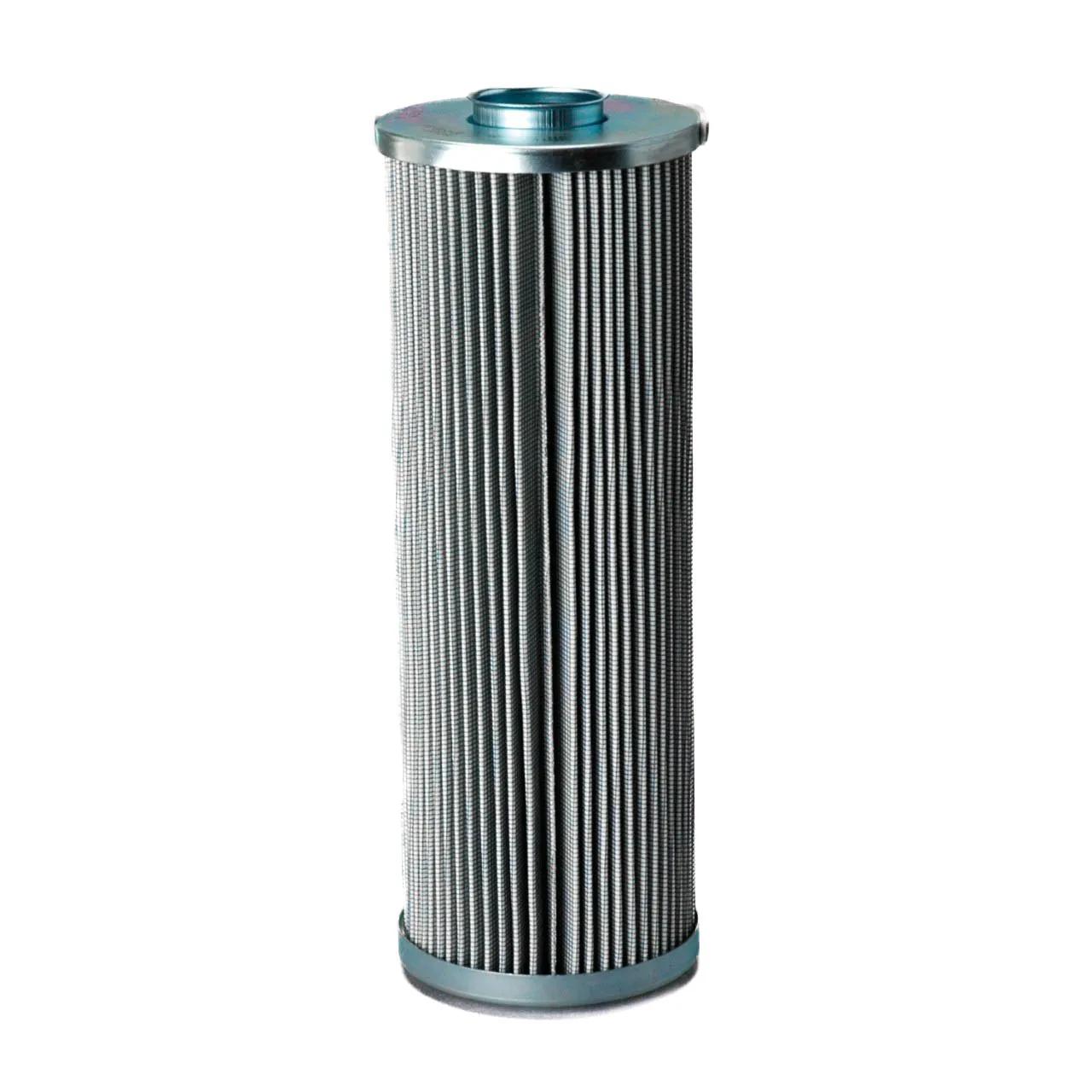

Hydraulic, Cartridge L: 10,87 in, OD: 3,72 in, ID: 1,9 in
#DONP573283
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 43.52 psi (3 bar) |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 1.9 in (48.3 mm) |
| Length | 10-7/8 in (27.64 cm) |
| Outer Diameter | 3-23/32 in (9.45 cm) |
| Overall Length | 10.87 in (276.1 mm) |
| Length Range | 10 to 10.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P573283 |
| 0500R003ON |
| 0500R003ONV |
| 1263003 |
| 1263007 |
| 0500R003BN3HC |
| 0500R003BN4HC |
| 0500R003BNHC |
| MP4250 |
| MP4254 |
| HC2238FMP10Z |
| HC2238FDP10H |
| HC2238FDP10Z |
| HC2246FDP10H50 |
| HC2238FMP10H |
| HC2246FMP10H50 |
| HC2238FKP10H |
| HC2238FKP10Z |
| HC2246FKP10H50 |
| 934566 |
| 938285Q |
| SBF0500RZ3B |
| RE130D03B |
| RE130G03B |
| HC2238FCP10Z |
| HC2238FCP10H |
| HC2246FCP10H50 |
| 01NL4010VGHREP |
| 311520 |
| HC2246FRP10H50 |
| HC2238FHP10H |
| HC2238FHP10Z |
| HC2246FHP10H50 |
| MP64247 |
| MP64247P01 |
| R48D03GV |
| HP33RNL103MB |
