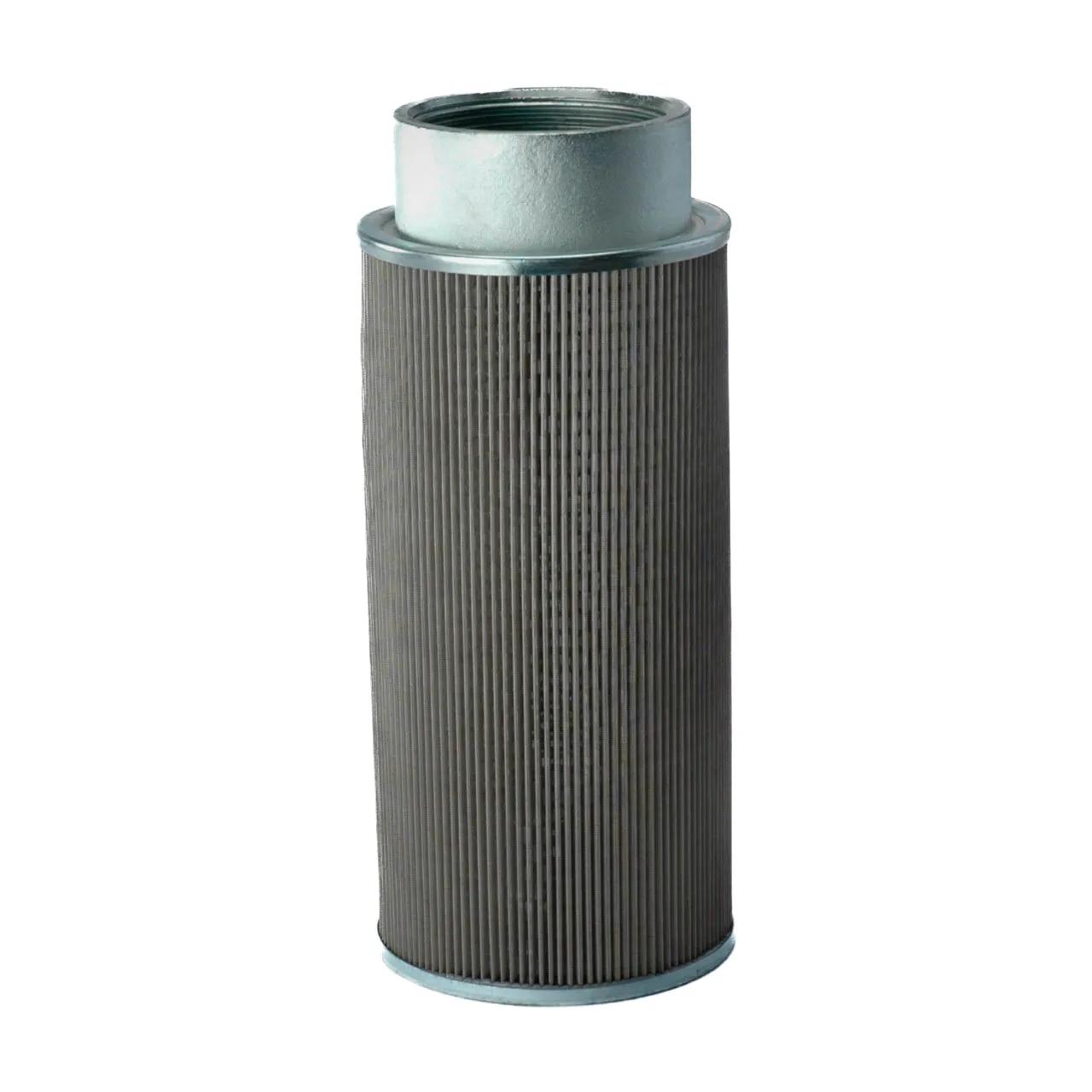

Hydraulic, Cartridge L: 11,8 in, OD: 5,13 in, ID: 4 in
#DONP562212
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.91 psi (0.2 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 2 | 238 Micron |
| Efficiency Beta 2 (Micron) | 250 Micron |
| Inner Diameter | 4 in (101.6 mm) |
| Length | 11-51/64 in (29.97 cm) |
| Outer Diameter | 5-1/8 in (13.03 cm) |
| Length Range | 11 to 11.99 in |
| Style | Strainer |
| Thread Size | 3 NPT |
Interchanges & Equivalent parts:
| P100360 |
| P562212 |
| SEC100360RV3 |
| WSS100060X |
| AS100360RV3 |
| DN P562212 |
| 2191-P562212 |
| DONP562212 |
| F28C250B3 |
