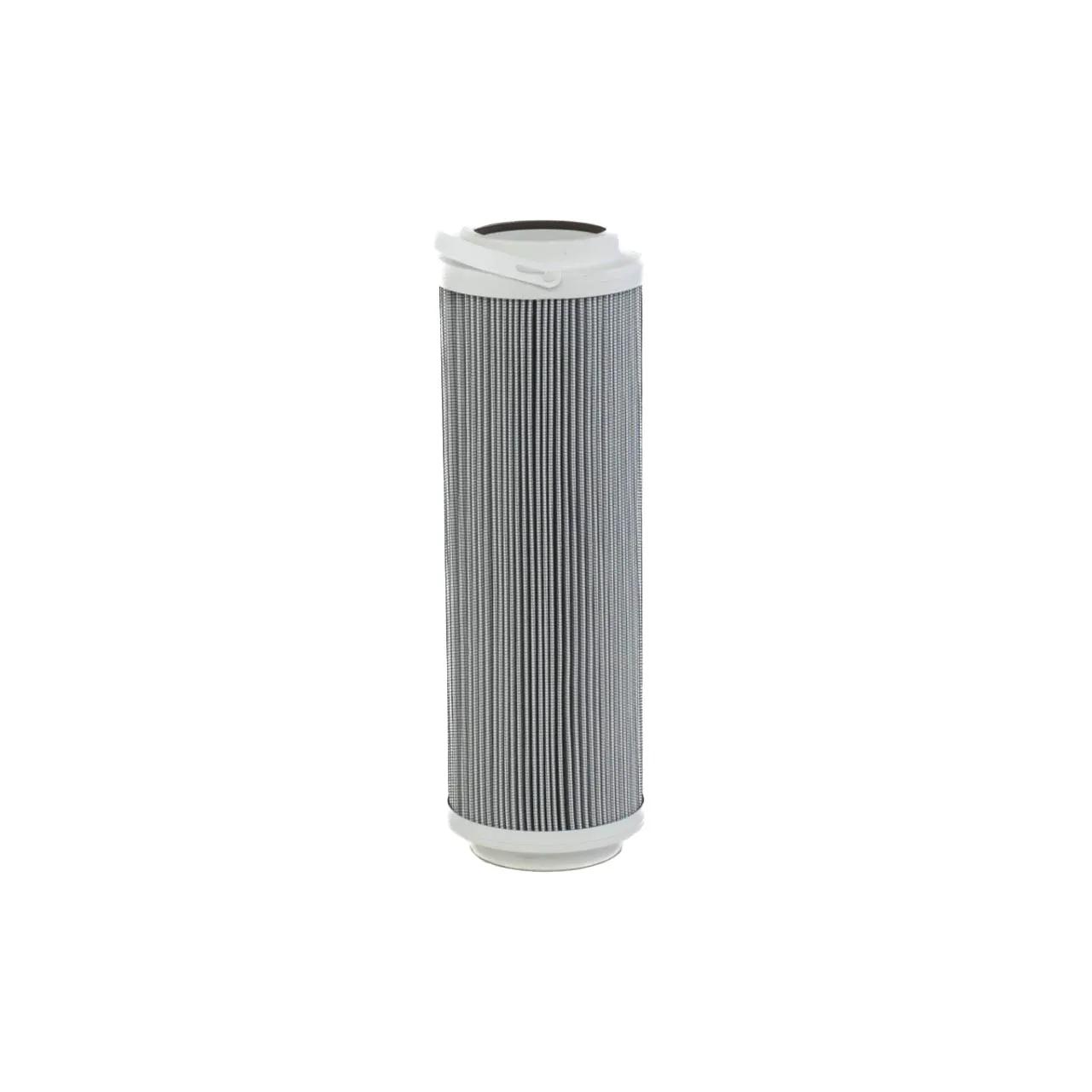

Hydraulic, Cartridge L: 12,32 in, OD: 3,85 in, ID: 2,47 in
#DONP570893
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Inner Diameter | 2.47 in (62.8 mm) |
| Length | 12-5/16 in (31.27 cm) |
| Outer Diameter | 3-27/32 in (9.75 cm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P570893 |
| HP944L136MB |
| P564841 |
| DT9404128UM |
| HF35016 |
| FC220G06 |
| A912369 |
| KMP9404A06B13 |
| HC9404FDN12H |
| HC9404FMN12H |
| 15891306 |
| BE944L136MB |
| HC9404FKN12H |
| HC9404FMN13H |
| HC9404FRN12H |
| HC9404FCN12H |
| HC9404FHN12H |
