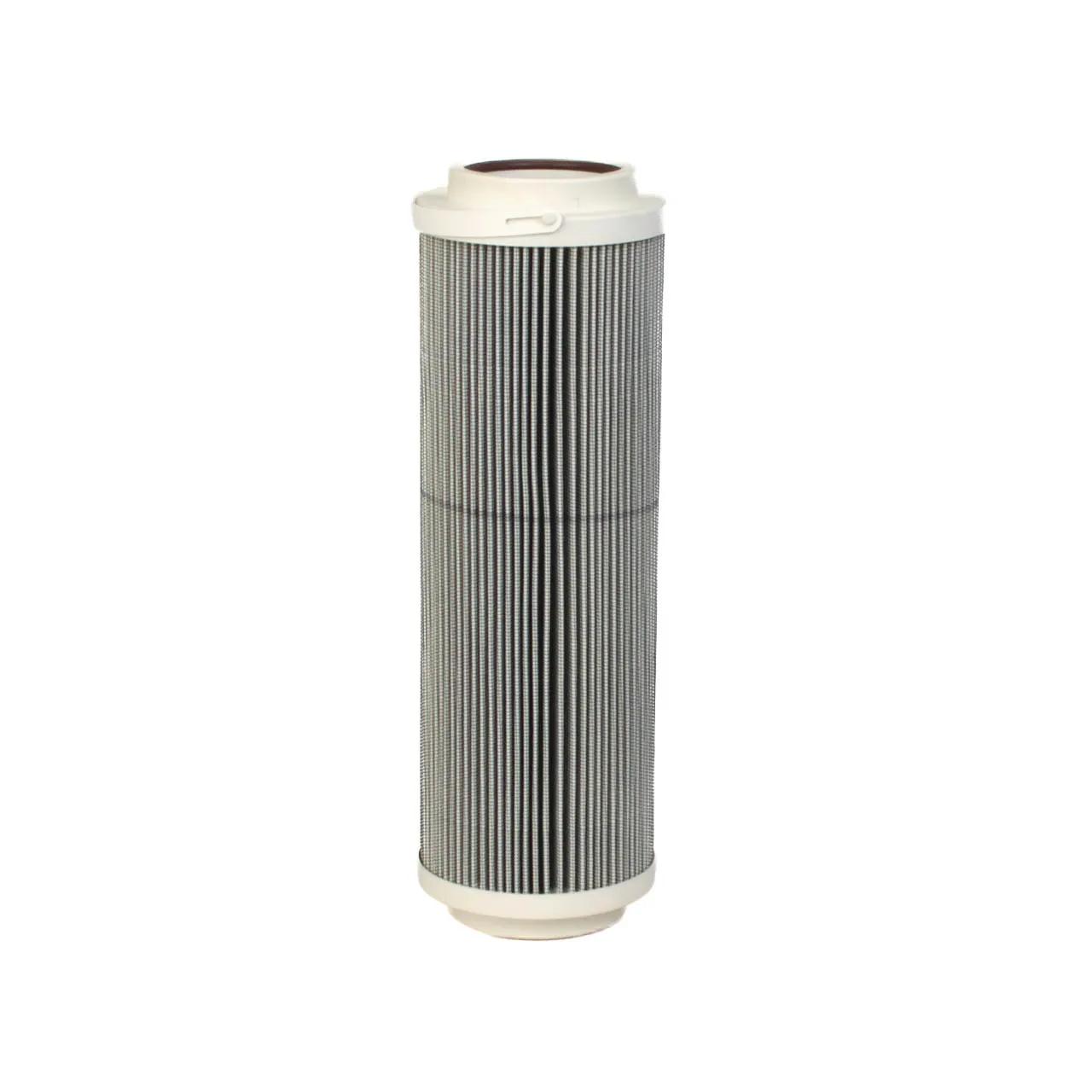

Hydraulic, Cartridge L: 12,35 in, OD: 3,84 in, ID: 2,47 in
#DONP570894
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 25 Micron |
| Efficiency Beta 1000 (Micron) | 25 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Inner Diameter | 2.47 in (62.8 mm) |
| Length | 12-11/32 in (31.34 cm) |
| Outer Diameter | 3-27/32 in (9.75 cm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P570894 |
| HP944L1325MB |
| DT94041225UM |
| DT94041325UM |
| C220G25 |
| HF30996 |
| SH87649 |
| LH95215 |
| HC9404FDT13H |
| HC9404FDT13Z |
| HC9404FMT13H |
| HC9404FMT13Z |
| HC9404FKT13H |
| HC9404FKT13Z |
| HC9404FCT13H |
| HC9404FCT13Z |
| HC9404FRT13H |
| HC9404FRT13Z |
| HC9404FHT13H |
| HC9404FHT13Z |
