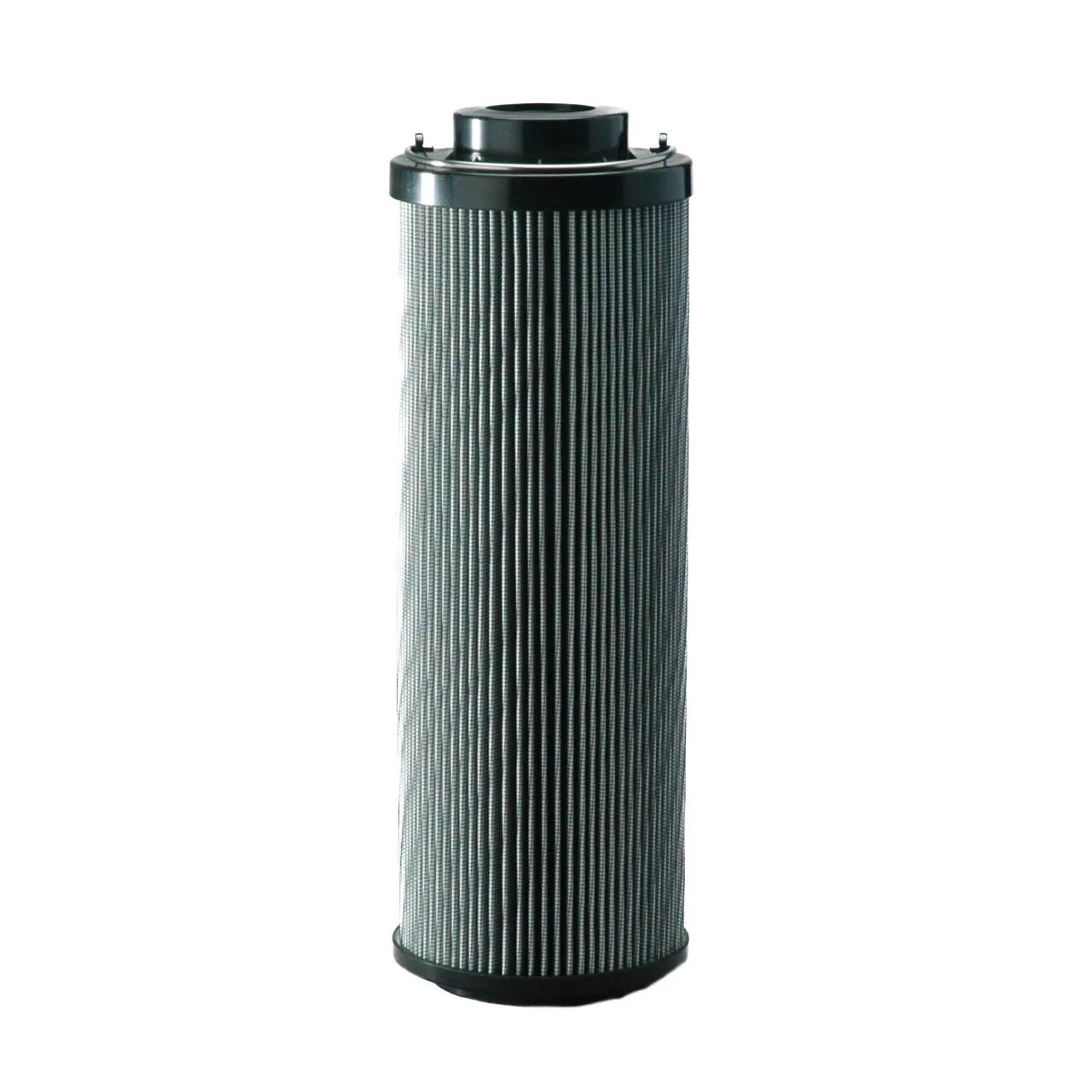

Hydraulic, Cartridge L: 12,36 in, OD: 4,47 in, ID: 2,54 in
#DONP566985
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Diameter Range | 4 to 4.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 2.54 in (64.6 mm) |
| Length | 12-23/64 in (31.39 cm) |
| Outer Diameter | 4-15/32 in (11.35 cm) |
| Overall Length | 13.11 in (333 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP66RNL143MB |
| HP66RNL143MV |
| P566985 |
| DT0660R5UM |
| 10660LAH3XLA006MSO3000 |
| 30TR660H3LLLA |
| RHR660G03B |
| RHR660G03V |
| HF40034 |
| ST1271 |
| HF28660 |
| FRHR660G03B |
| 0660R003BNHC |
| 1263015 |
| 0660R003BN3HC |
| 0660R003BN4HC |
| 1263019 |
| 2066203 |
| 2071567 |
| 0660R003BN3HCV |
| 0660R003BN4HCV |
| 0660R003BN4HCVSO103H |
| 0660R003BNHC2 |
| 0660R003BNHCV |
| 0660R003ON |
| 0660R003ONV |
| 0660R003ONVSO103H |
| 020660R3VG30HCSV |
| 3076173VG |
| DC660CA03ANPXX |
| DK290A003ANCPXX |
| MP4662 |
| MP4668 |
| HC2286FDP12H |
| HC2286FDP12H50 |
| HC2286FDP12Z |
| HC2286FDP12Z50 |
| HC2286FMP12H |
| HC2286FMP12H50 |
| HC2286FMP12Z |
| HC2286FMP12Z50 |
| PR3324 |
| SBF0660RZ3B |
| SBF0660RZ3V |
| SBF0660RZ03B |
| SBF0660RZ03V |
| RE160G03B |
| RE160G03V |
| 660R003N |
| 660R003NV |
| 14931403 |
| 14931403V |
| ER662B2C03 |
| ER662V2C03 |
| VR662B2C03 |
| VR662V2C03 |
| ABZFER0450031XMA |
| ABZFER0450031XVA |
| ABZFRS0450031XMA |
| ABZFRS0450031XVA |
| R928017600 |
| DER662B2C03 |
| DER662V2C03 |
| BE66RNL143MB |
| BE66RNL143MV |
| HC2285FKP12H |
| HC2286FKP12H |
| HC2286FKP12Z |
| HC2285FCP12H |
| HC2286FCP12H |
| HC2286FCP12Z |
| HC2286FCP12H50 |
| HC2285FCP12Z |
| HC2285FDP12H |
| HC2285FDP12Z |
| HC2285FKP12Z |
| HC2285FMP12H |
| HC22 |
