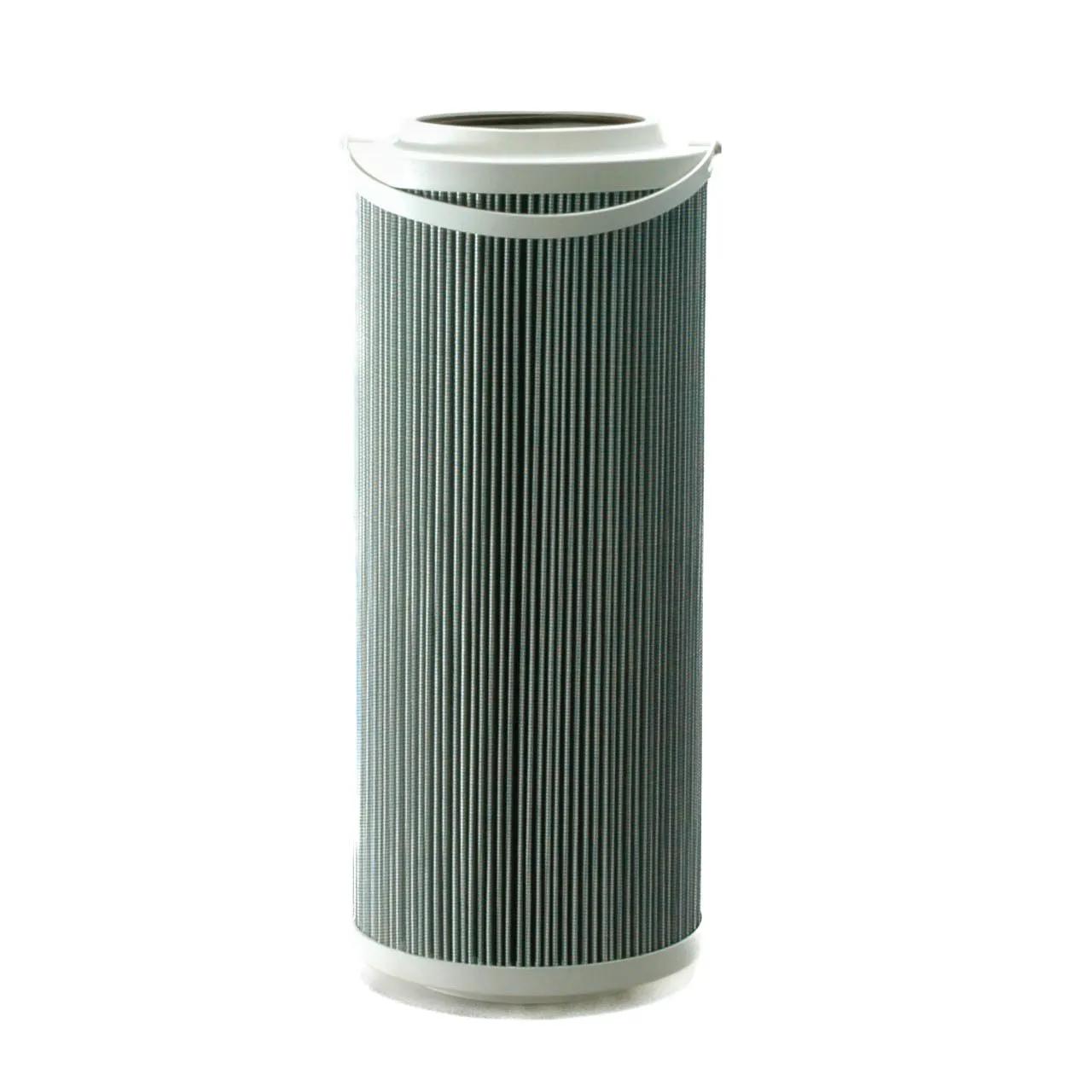

Hydraulic, Cartridge L: 12,44 in, OD: 3,99 in, ID: 2,53 in
#DONP566523
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 2.53 in (64.3 mm) |
| Length | 12-7/16 in (31.6 cm) |
| Outer Diameter | 3-63/64 in (10.11 cm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566523 |
| DT89041325UM |
| C212G25 |
| LH95987 |
| SBF891413Z25B |
| SBF891413Z25V |
| 89151325UM |
| 89151325UMV |
| C28A25GV |
| HC8904FDT13H |
| HC8904FDT13Z |
| HC8904FKT13H |
| HC8904FKT13Z |
| HC8904FUT13H |
| HC8904FUT13Z |
| HC8904FCT13H |
| HC8904FCT13Z |
| HC8904FRT13H |
| HC8904FRT13Z |
| HC8904FHT13H |
| HC8904FHT13Z |
| KMP8904AKR13B |
| KMP8904AKR13V |
