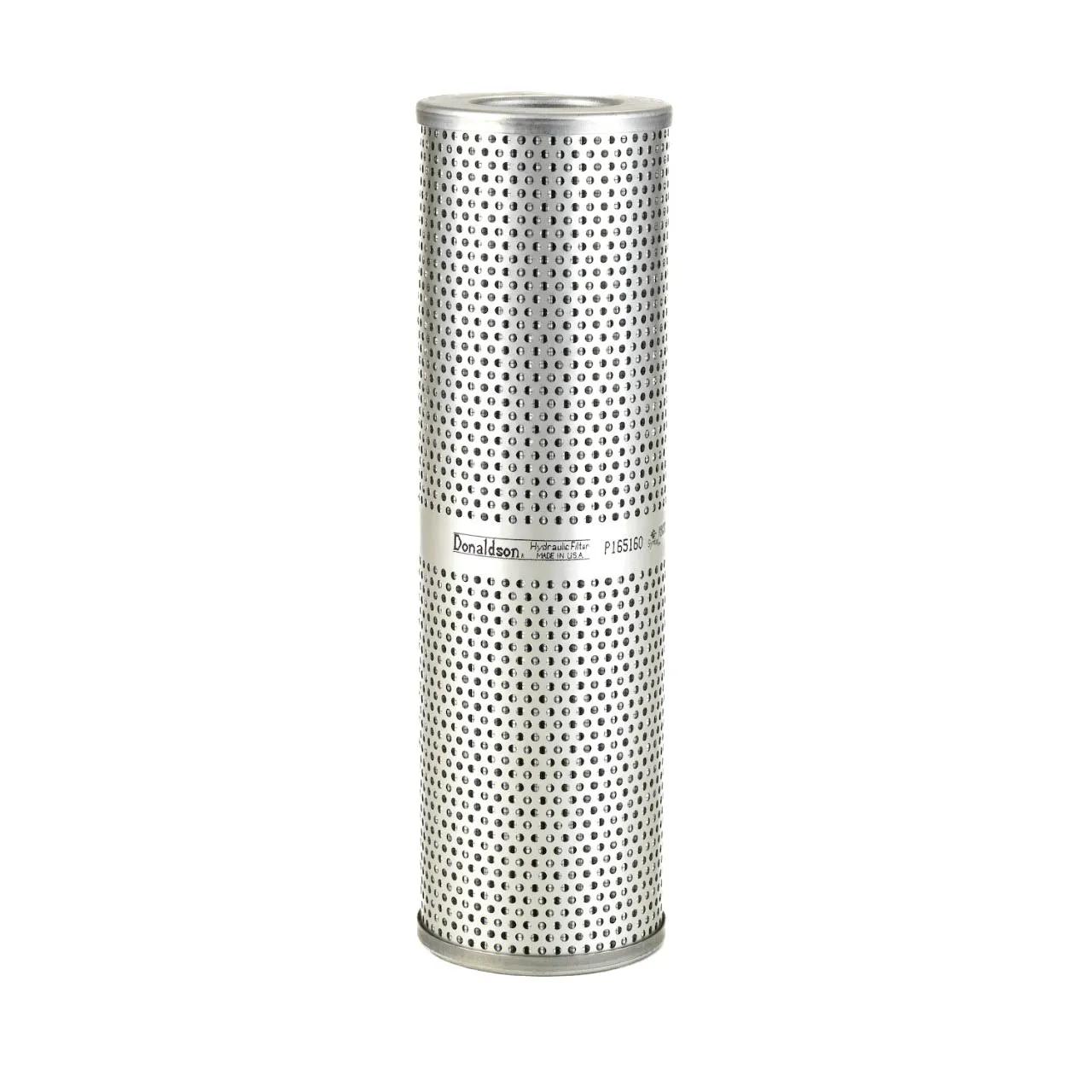

Hydraulic, Cartridge L: 12,8 in, OD: 3,76 in, ID: 1,72 in
#DONP165160
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 7 Micron |
| Efficiency Beta 1000 (Micron) | 7 Micron |
| Inner Diameter | 1.72 in (43.7 mm) |
| Length | 12-51/64 in (32.51 cm) |
| Outer Diameter | 3-49/64 in (9.58 cm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P165160 |
| R70C03GV |
| HP85L136MB |
| H8036 |
| H9036 |
| 168500TH6SLS000P |
| 168500TH6XLS000M |
| R850H1306A |
| F850013K6B |
| R452G03 |
| R452G03V |
| R452G06 |
| FFPAVL11133B5 |
| FFPAVL11133B3 |
| FC1372F005BS |
| FC1372F005XS |
| FC1372Q005XS |
| FFPAVL11133B5ABS |
| HF30514 |
| HF30154 |
| HF30515 |
| HF7033 |
| HP7033 |
| HF7032 |
| P0381282D71B |
| P0381282S71 |
| P0381282U71 |
| P0381282D62B |
| P0381282S62B |
| FR452G06 |
| SH87057 |
| 0585003VG10BP13 |
| 306550 |
| 0585006VG10BP13 |
| 301060 |
| 3010606VG |
| A912139 |
| KMP8500A06B13 |
| LH95840 |
| MP4306 |
| MP5298 |
| 935176 |
| FC1372Q005BS |
| SBF850013S3B |
| SBF850013Z5B |
| HY20351 |
| HY20354 |
| RP080E05B |
| 15071306 |
| BE85001306A |
| R928016780 |
| 3I0662 |
| LPE413B06 |
| LPE413V06 |
| BE85L136MB |
| 20803 |
| 1108783 |
| HC8500FCN13Z |
| HC8500FMN13Z |
| HC8500FUN13Z |
| HC8500FKN13Z |
| HC8500FDN13Z |
| HC8500FMP13H |
| HC8500FCP13H |
| HC8500FCP13Z |
| HC8500FMP13Z |
| HC8500FUP13Z |
| HC8500FKP13Z |
| HC8500FDP13Z |
| HC8500FDN13H |
| HC8500FKN13H |
| HC8500FUN13H |
| HC8500FUP13H |
| HC8500FDP13H |
| HC8500FKP13H |
| HC8500FCN13H |
| HC8500FMN13H |
| P85100HFB |
| 73832437 |
| 8850L06B13 |
| 2850L06B13 |
| 3850DGEB13 |
| 8850DGGB13 |
| SF8500133UM |
| SF8500136UM |
| HF165160 |
| 81100 |
