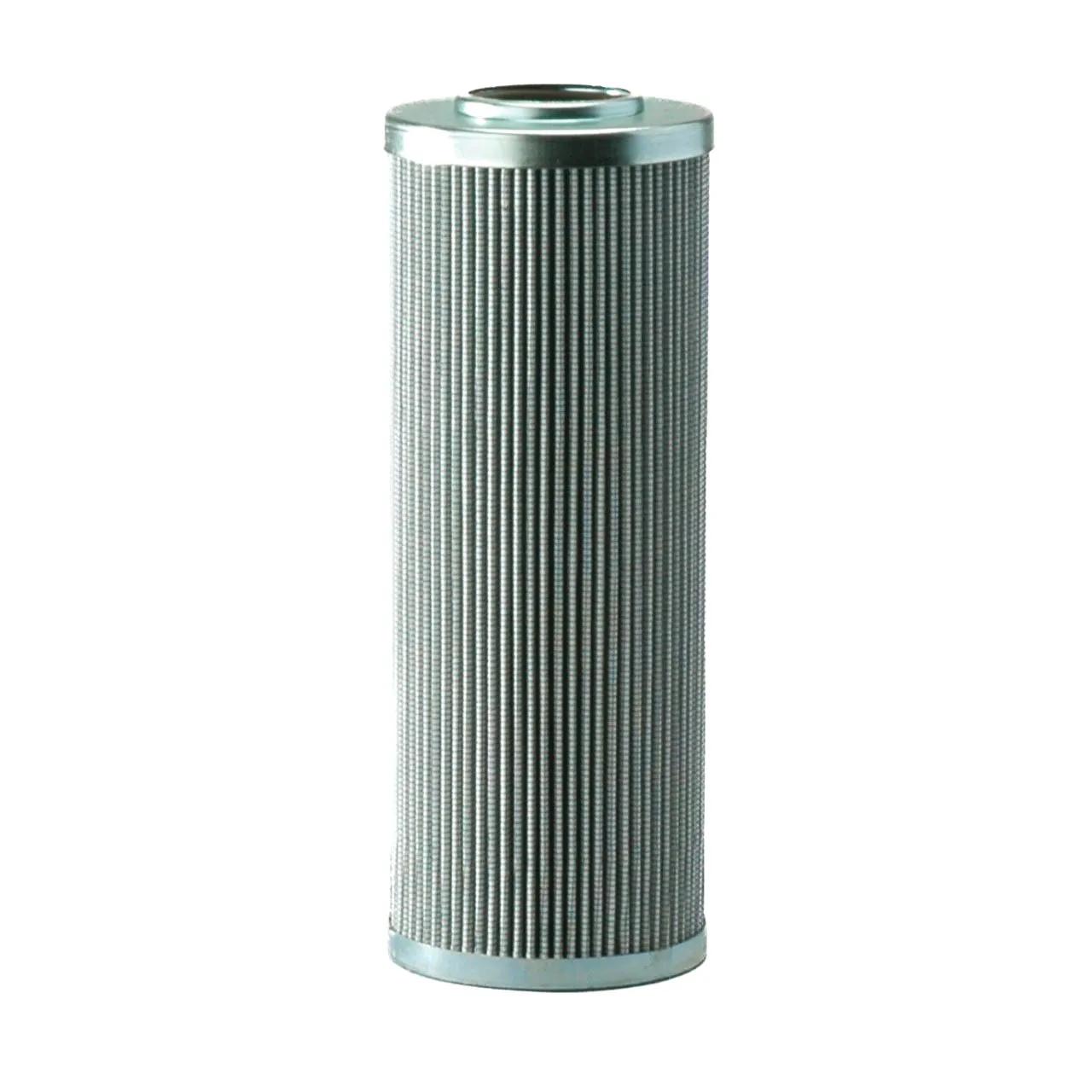

Hydraulic, Cartridge L: 12,87 in, OD: 3,1 in, ID: 1,49 in
#DONP566465
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 1.49 in (37.9 mm) |
| Length | 12-7/8 in (32.72 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 12.9 in (327.7 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566465 |
| DT8200135UM |
| R820H1303A |
| 11613D03BN |
| H820013003BN |
| LH95480 |
| LH95480V |
| E2682B4C03 |
| HC8200FDP13H |
| HC8200FDP13Z |
| HC8200FKP13H |
| HC8200FKP13Z |
| HC8200FUZ13H |
| HC8200FUZ13Z |
| HC8200FCP13H |
| HC8200FCP13Z |
| HC8200FRP13H |
| HC8200FHP13H |
| HC8200FHP13Z |
| 1.16.13D03BN |
