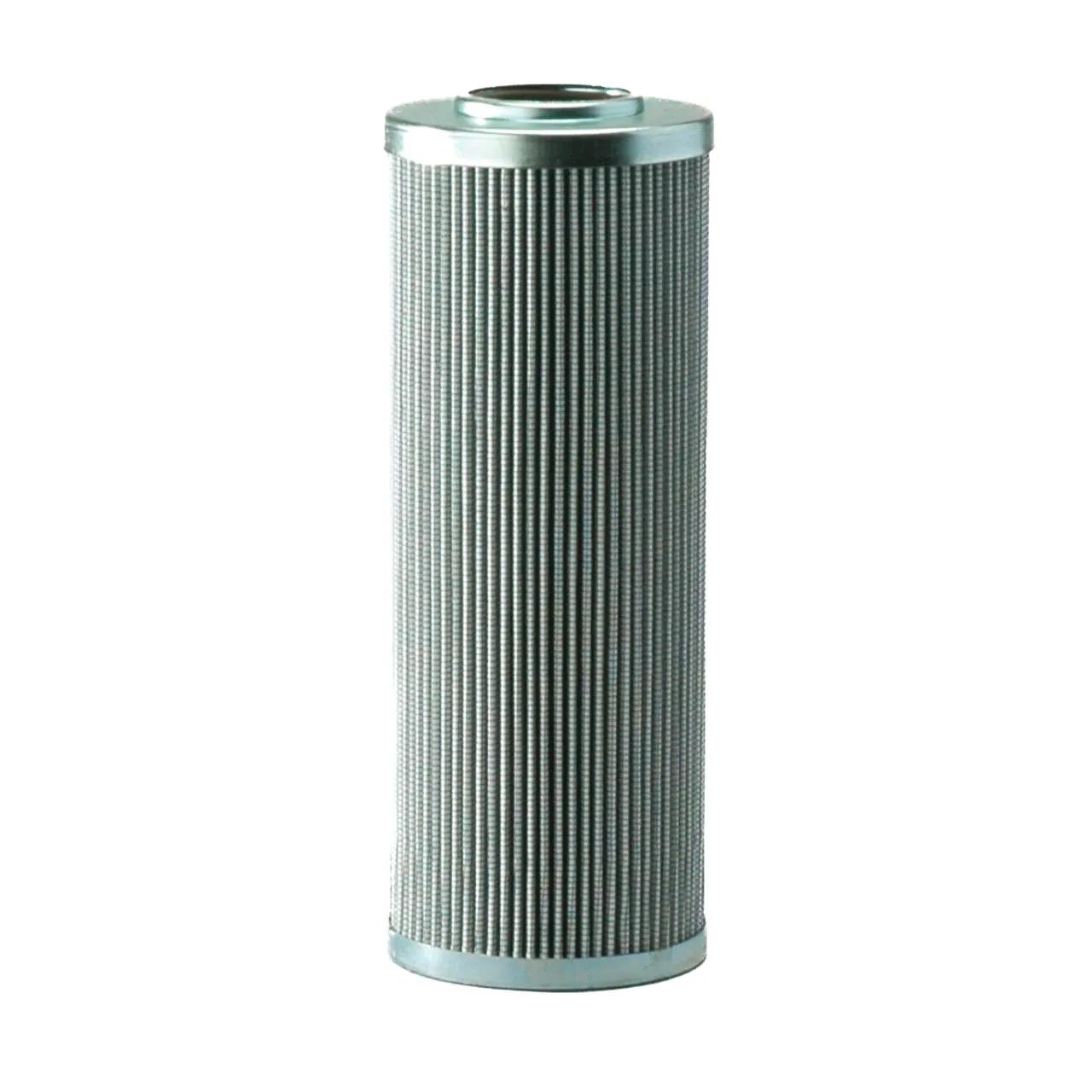

Hydraulic, Cartridge L: 12,87 in, OD: 3,1 in, ID: 1,49 in
#DONP566468
Caractéristiques et avantages
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Spécifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 1.49 in (37.9 mm) |
| Length | 12-7/8 in (32.72 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 12.9 in (327.7 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges et pièces équivalentes:
| P566468 |
| DT82001325UM |
| R820H1325A |
| SH87015 |
| 11613D25BN |
| H820013020BN |
| LH95510V |
| SBF820013Z2B |
| SBF820013Z2V |
| HC8200FDT13H |
| HC8200FDT13Z |
| HC8200FKT13H |
| HC8200FKT13Z |
| HC8200FUT13H |
| HC8200FUT13Z |
| HC8200FCT13H |
| HC8200FCT13Z |
| HC8200FRT13H |
| HC8200FRT13Z |
| HC8200FHT13H |
| HC8200FHT13Z |
