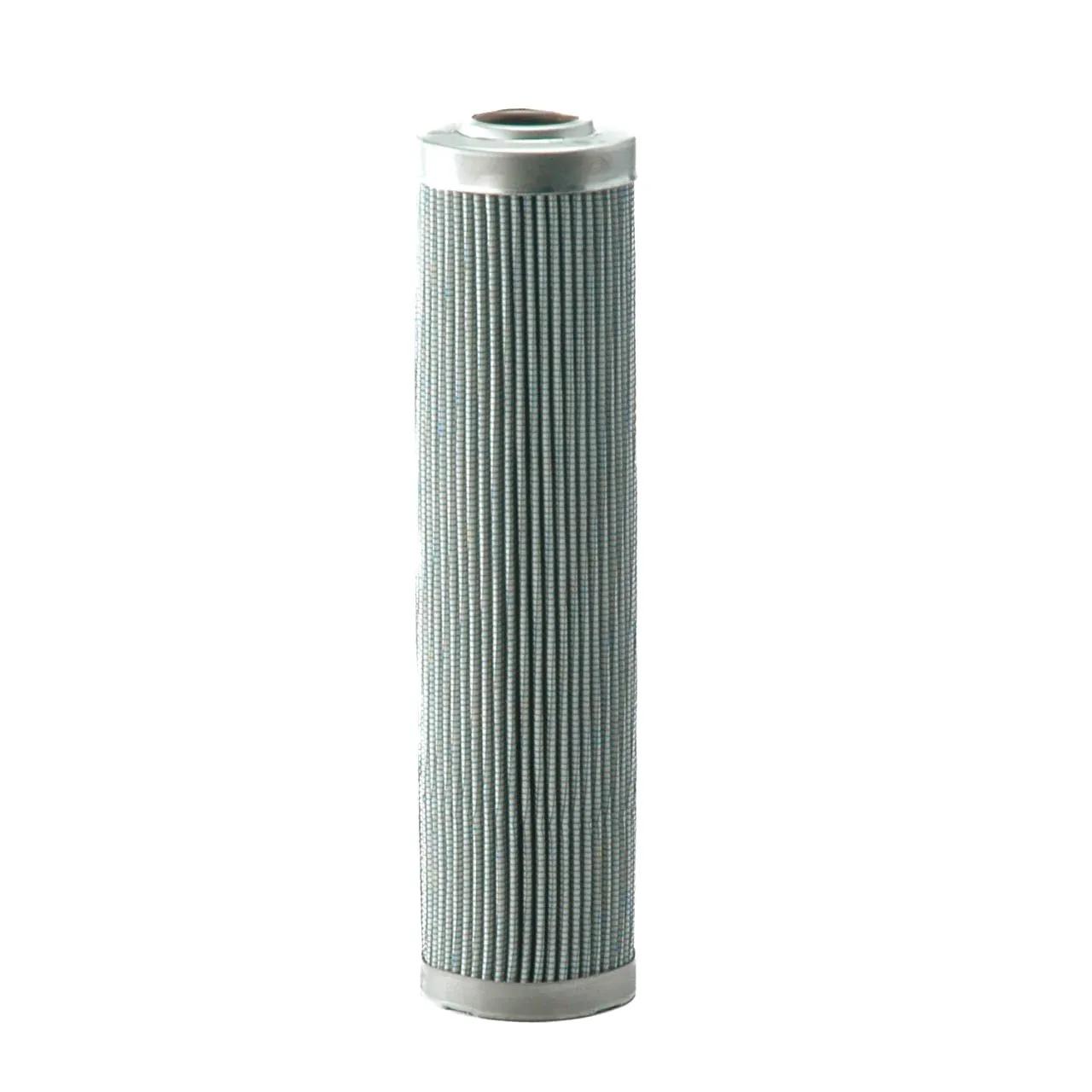

Hydraulic, Cartridge L: 12,91 in, OD: 1,97 in, ID: 0,95 in
#DONP566401
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Beta 1000 (Micron) | 4 Micron |
| Inner Diameter | 0.95 in (24.2 mm) |
| Length | 12-29/32 in (32.79 cm) |
| Outer Diameter | 1-31/32 in (5 cm) |
| Overall Length | 12.93 in (328.5 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566401 |
| DT9800132UM |
| LH95284 |
| LH95284V |
| SBF980013Z1B |
| SBF980013Z1V |
| HC9800FDZ13H |
| HC9800FDZ13Z |
| HC9800FKZ13H |
| HC9800FKZ13Z |
| HC9800FUZ13H |
| HC9800FUZ13Z |
| HC9800FCZ13H |
| HC9800FCZ13Z |
| HC9800FRZ13H |
| HC9800FRZ13Z |
| HC9800FHZ13H |
| HC9800FHZ13Z |
| KMP9800AKC13B |
| KMP9800AKC13V |
| SBF9800-13Z1B |
| SBF9800-13Z1V |
