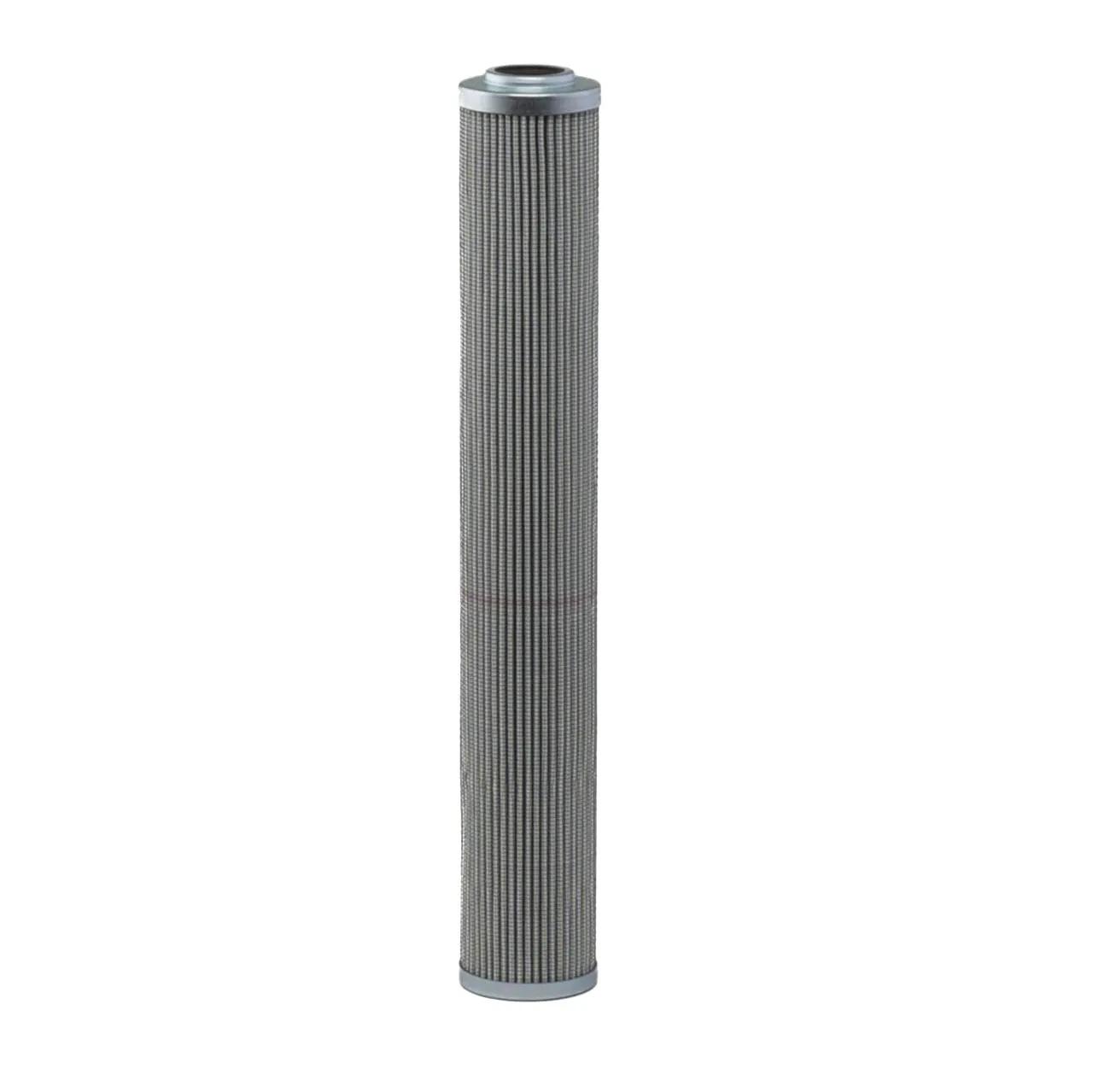

Hydraulic, Cartridge L: 12,91 in, OD: 1,97 in, ID: 0,95 in
#DONP566402
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 0.95 in (24.2 mm) |
| Length | 12-29/32 in (32.79 cm) |
| Outer Diameter | 1-31/32 in (5 cm) |
| Overall Length | 12.93 in (328.5 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566402 |
| DT9800135UM |
| R980H1303A |
| HF30522 |
| 11313D03BN |
| H980013003BN |
| LH95286 |
| LH95286V |
| 933782Q |
| SBF980013Z3B |
| SBF980013Z3V |
| 9800133UM |
| 9800133UMV |
| V6011B4C03 |
| E6011B4C03 |
| E6011V4C03 |
| S1303LN |
| HC9800FDP13H |
| HC9800FDP13Z |
| HC9800FKP13H |
| HC9800FKP13Z |
| HC9800FUP13H |
| HC9800FUP13Z |
| HC9800FCP13H |
| HC9800FCP13Z |
| HC9800FRP13Z |
| HC9800FHP13Z |
| KMP9800AKF13V |
| 02061087 |
| 1.13.13D03BN |
| H-9800/13-003BN |
| SBF-9800-13Z3B |
| SBF9800-13Z3B |
| SBF9800-13Z3V |
| 2061087 |
