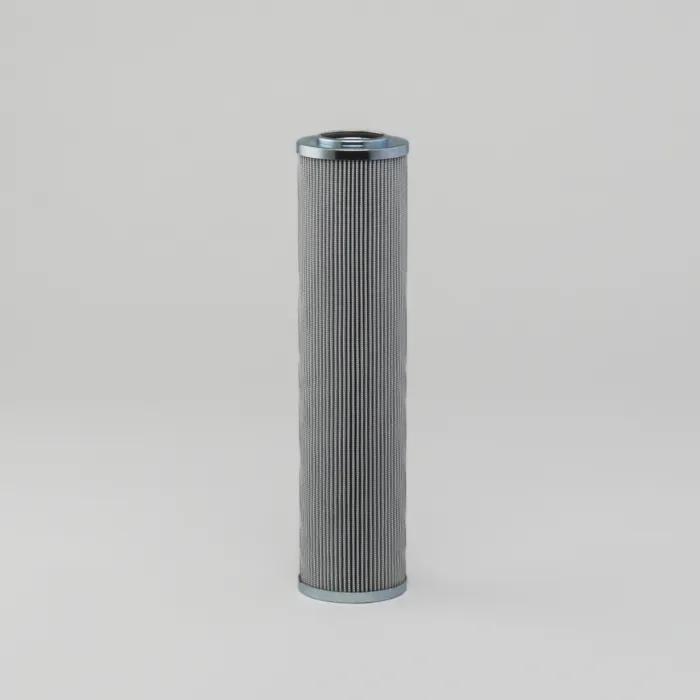

Hydraulic, Cartridge L: 12,91 in, OD: 3,1 in, ID: 1,62 in
#DONP566214
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Beta 1000 (Micron) | 4 Micron |
| Gasket ID | 1.65 in (42 mm) |
| Gasket OD | 1.89 in (48.1 mm) |
| Inner Diameter | 1.62 in (41.2 mm) |
| Length | 12-29/32 in (32.79 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 12.91 in (328 mm) |
| Series | W061. FPK04. HPK04. W620 |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP60L131MB |
| HP60L131MV |
| P566214 |
| DT9600132UM |
| F960013K1V |
| H9613MAAV |
| H9613MAVBL |
| M69613MAAV |
| M69613MAVBL |
| A912404 |
| KMP9600A01V13 |
| LH95239 |
| LH95239V |
| 9600L012F3 |
| SBF960013Z1B |
| SBF960013Z1V |
| 9600131UMV |
| 14841301V |
| V6021V4C01 |
| E6021B4C01 |
| E6021V4C01 |
| BE96001301A |
| 383016004C |
| BE60L131MV |
| HC9600FDZ13H |
| HC9600FDZ13Z |
| HC9600FKZ13H |
| HC9600FKZ13Z |
| HC9600FUZ13H |
| HC9600FUZ13Z |
| HC9600FCZ13H |
| HC9600FCZ13Z |
| HC9600FMZ13Z |
| HE9613LL01V |
| HE9613LS01V |
| HE9613MS01V |
| 2960L01V13 |
| 3960GGBV13 |
| HC9600FHZ13H |
| HC9600FRZ13Z |
| HC9600FRZ13H |
| HC9600FHZ13Z |
| KMP9600AKC13B |
| KMP9600AKC13V |
| SBF9600-13Z1B |
| SBF9600-13Z1V |
| D53A01GAV |
