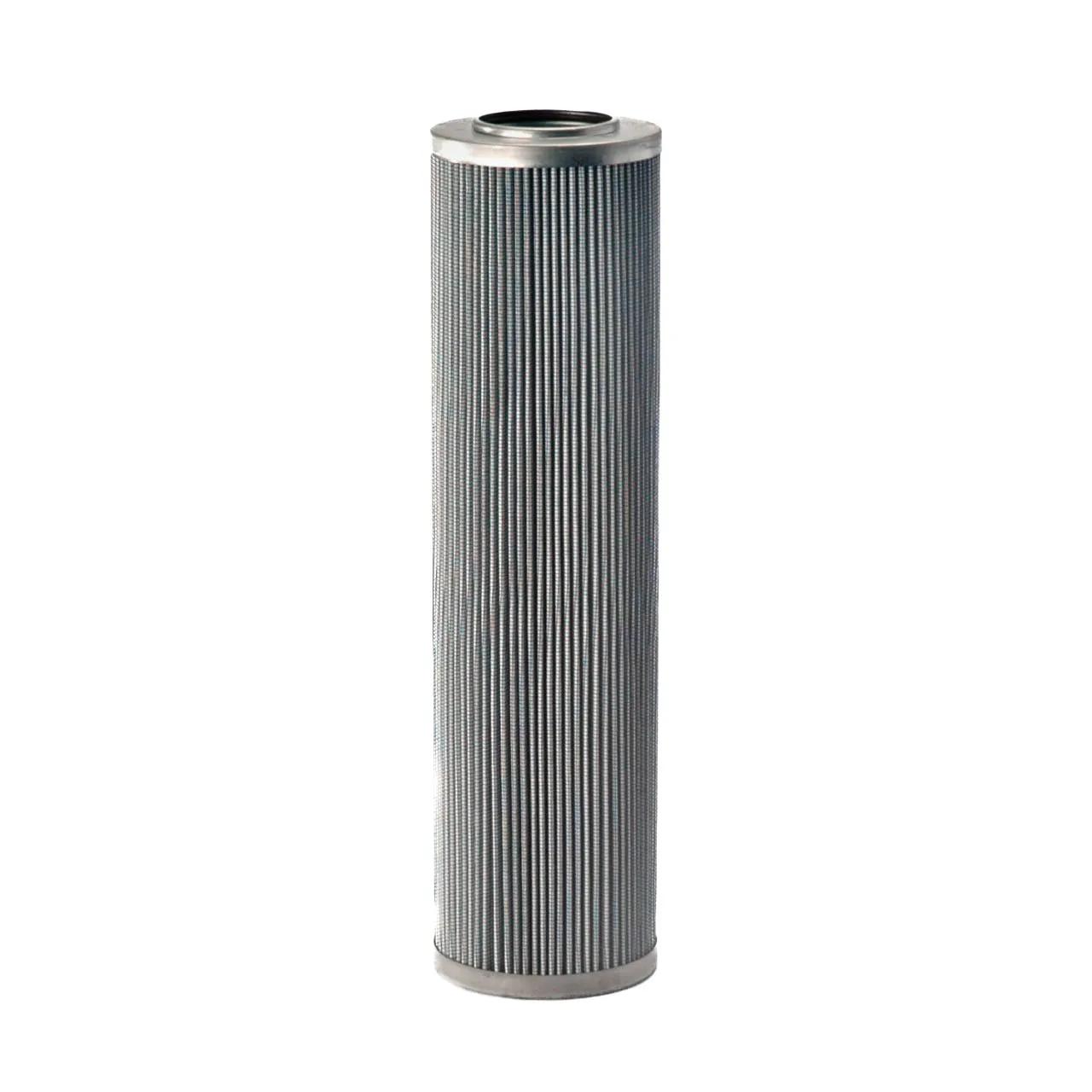

Hydraulic, Cartridge L: 12,91 in, OD: 3,4 in, ID: 1,94 in
#DONP566480
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Inner Diameter | 1.94 in |
| Length | 12.91 in |
| Outer Diameter | 3.4 in |
| Overall Length | 12.94 in (328.7 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566480 |
| DT8800135UM |
| R880H1303A |
| HF30511 |
| H880013003BNV |
| 11713D03BN |
| H880013003BN |
| LH95950 |
| LH95950V |
| 930222Q |
| SBF880013S1 |
| SBF880013Z3B |
| SBF880013Z3V |
| E2681B4C03 |
| HC8800FDP13H |
| HC8800FDP13Z |
| HC8800FKP13H |
| HC8800FKP13Z |
| HC8800FUP13H |
| HC8800FUP13Z |
| HC8800FCP13H |
| HC8800FCP13Z |
| HC8800FRP13Z |
| HC8800FHP13H |
| HC8800FHP13Z |
| DONP174531 |
| P174531 |
| SBF-8800-13Z3V |
| SBF8800-13Z3B |
| SBF8800-13Z3V |
| D68A03GAV |
