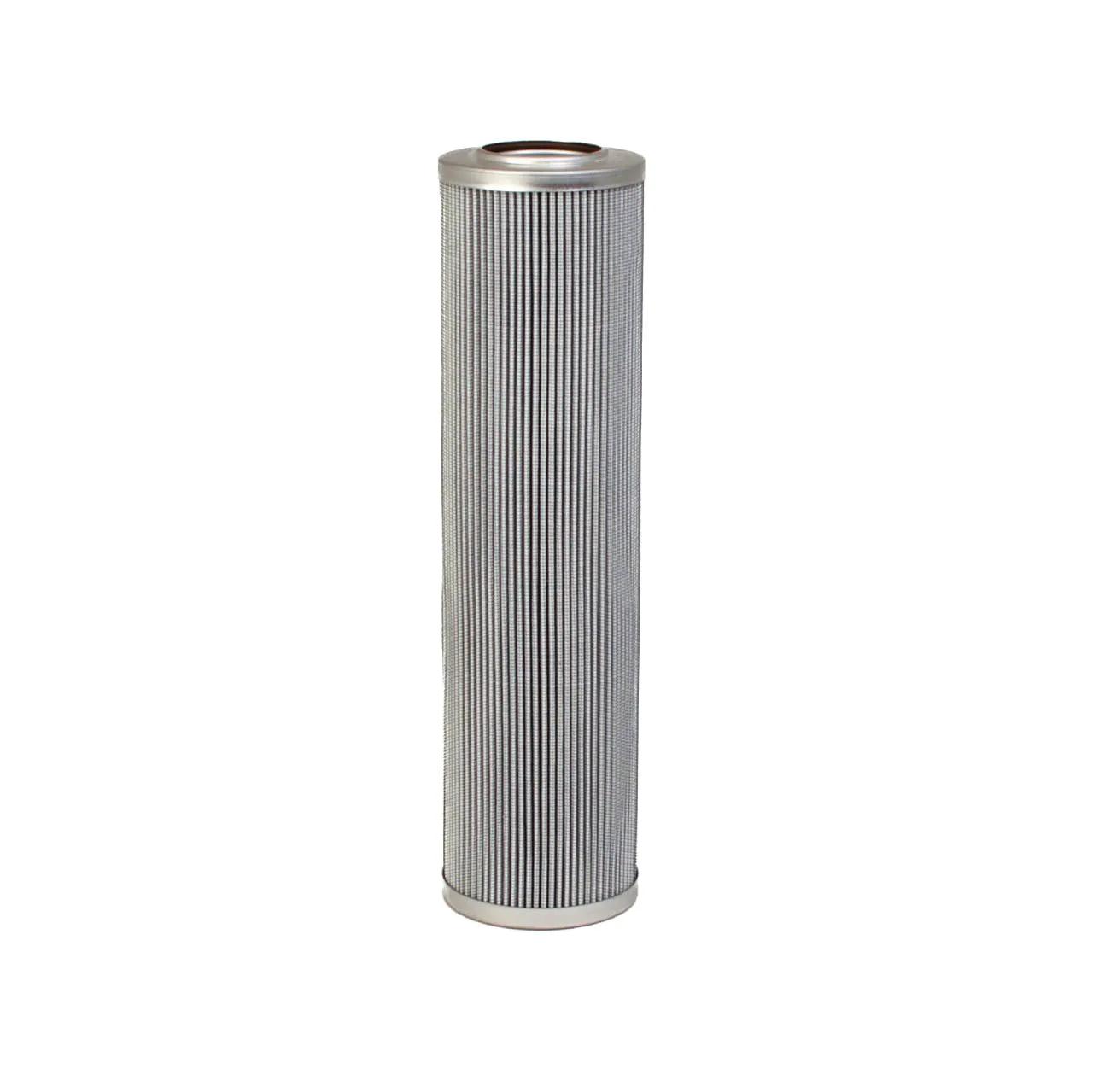

Hydraulic, Cartridge L: 12,91 in, OD: 3,4 in, ID: 1,94 in
#DONP566482
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 1.94 in (49.3 mm) |
| Length | 12-29/32 in (32.79 cm) |
| Outer Diameter | 3-13/32 in (8.66 cm) |
| Overall Length | 12.94 in (328.7 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566482 |
| DT88001314UM |
| R880H1312A |
| HF30281 |
| 52YT47 |
| H880013010BNV |
| 11713D12BN |
| 2059294 |
| H880013010BN |
| LH95970 |
| LH95970V |
| 930223Q |
| SBF880013S7 |
| SBF880013Z10B |
| SBF880013Z10V |
| E2681B4C10 |
| HC8800FDS13H |
| HC8800FDS13Z |
| HC8800FKS13H |
| HC8800FKS13Z |
| HC8800FUS13H |
| HC8800FUS13Z |
| HC8800FCS13H |
| HC8800FCS13Z |
| HC8800FRS13Z |
| HC8800FHS13H |
| HC8800FHS13Z |
| SBF-8800-13Z10V |
| SBF8800-13Z10B |
| SBF8800-13Z10V |
| HP88L1312MV |
