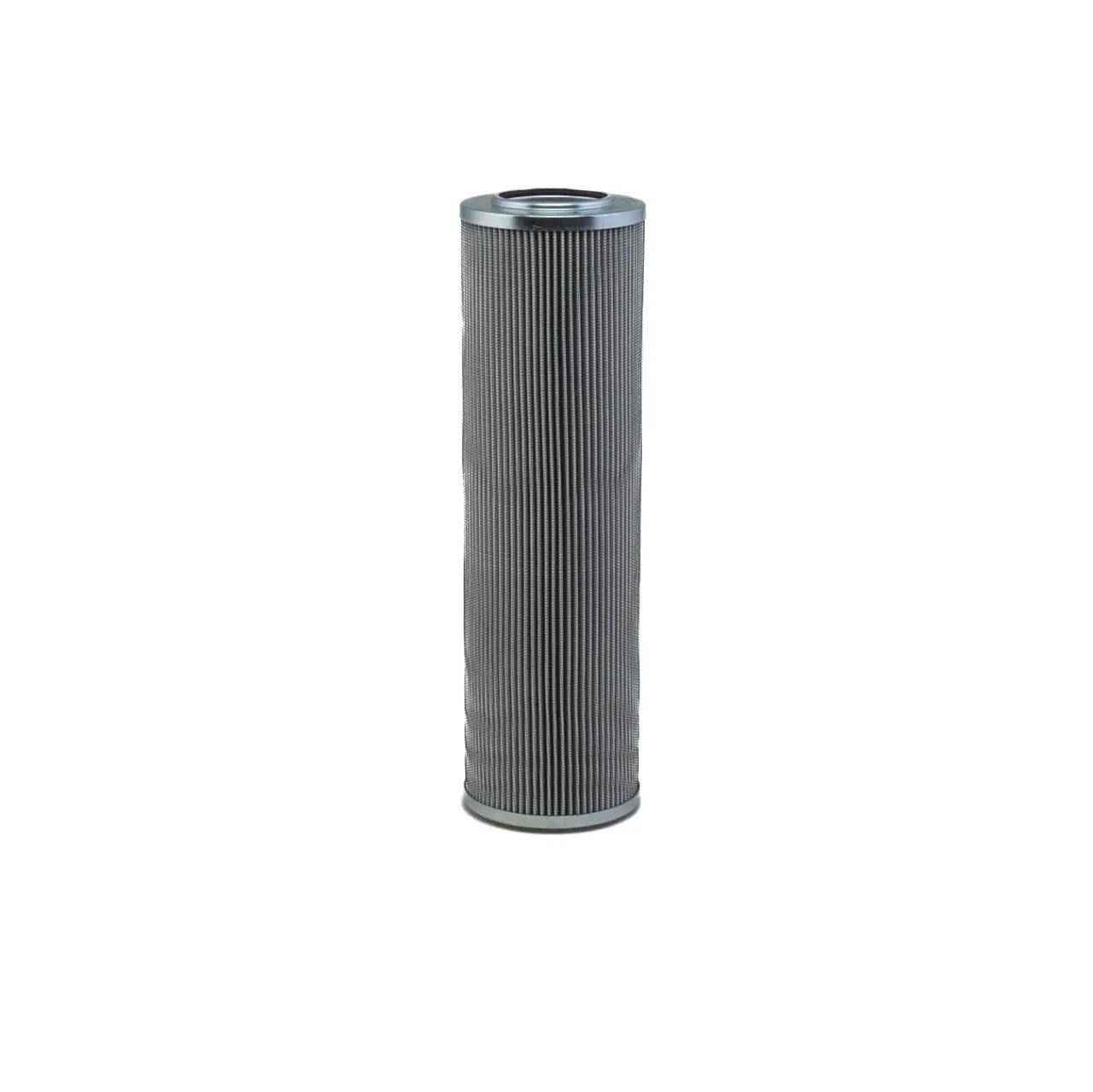

Hydraulic, Cartridge L: 13,07 in, OD: 3,79 in, ID: 2,17 in
#DONP566446
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 2.17 in (55.2 mm) |
| Length | 13-1/16 in (33.17 cm) |
| Outer Diameter | 3-51/64 in (9.65 cm) |
| Overall Length | 13.05 in (331.5 mm) |
| Length Range | 13 to 13.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566446 |
| 7800 |
| 57800 |
| DT9400138UM |
| R940H1306H |
| 11013D06BNV |
| 2060653 |
| 11013D06BN |
| H940013005BN |
| LH95083 |
| LH95083V |
| 929886Q |
| SBF940013S3 |
| SBF940013Z5B |
| SBF940013Z5V |
| 9400136UM |
| 9400136UMV |
| HC9400FDN13H |
| HC9400FDN13Z |
| HC9400FKN13H |
| HC9400FKN13Z |
| HC9400FUN13H |
| HC9400FUN13Z |
| HC9400FCN13H |
| HC9400FCN13Z |
| D52F06GV |
| 02060653 |
| 1.10.13D06BN |
| SBF-9400-13Z5B |
| SBF-9400-13Z5V |
| SBF9400-13Z5B |
| SBF9400-13Z5V |
