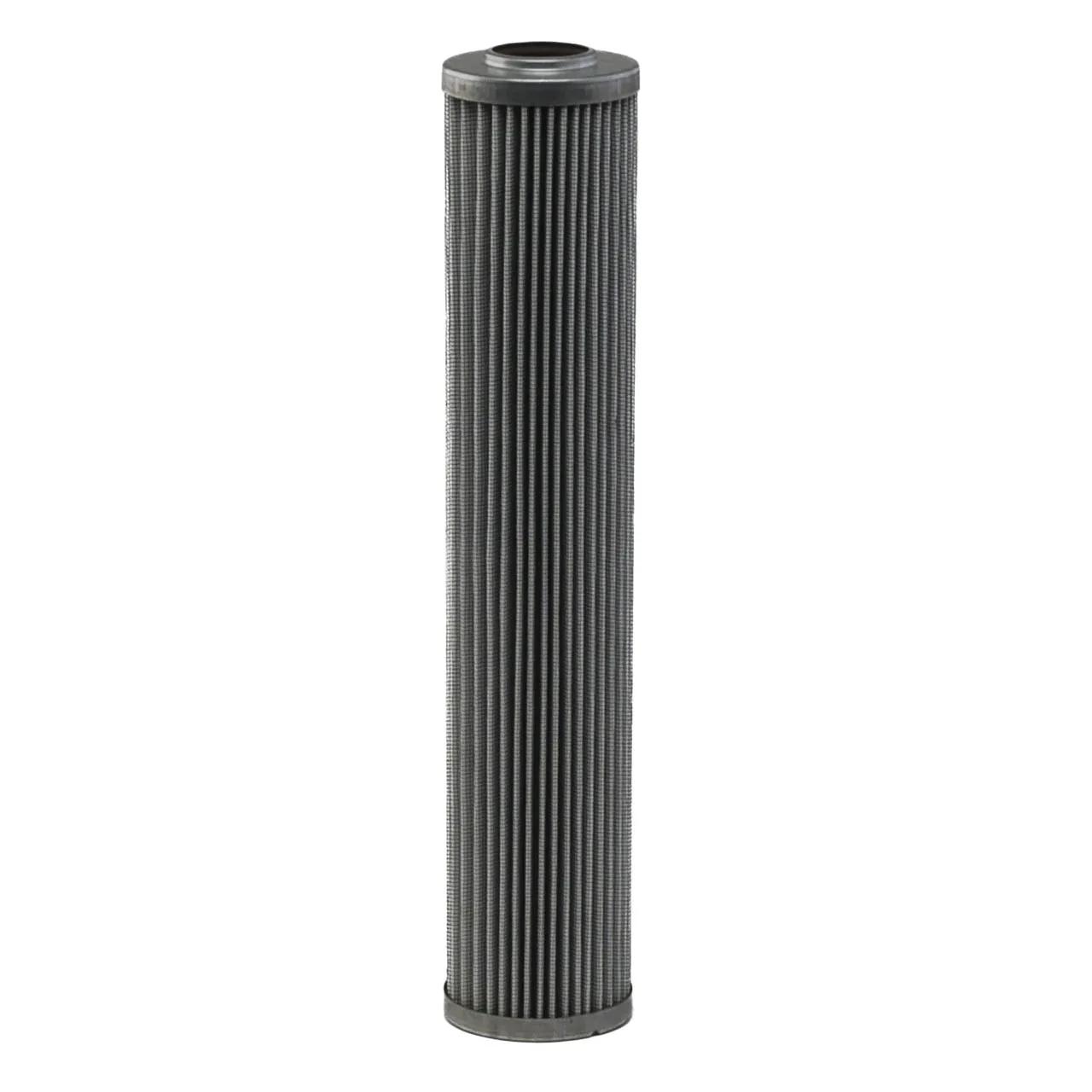

Hydraulic, Cartridge L: 13,7 in, OD: 2,7 in, ID: 1,36 in
#DONP566675
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.36 in (34.6 mm) |
| Length | 13-45/64 in (34.8 cm) |
| Outer Diameter | 2-45/64 in (6.86 cm) |
| Overall Length | 13.96 in (354.6 mm) |
| Length Range | 13 to 13.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP16DNL146MB |
| HP16DNL146MV |
| DT0280D8UM |
| DHD280G05B |
| DHD280G05V |
| FC7253F005BS |
| FC7253F005VS |
| FC7253F005XS |
| FC7253Q005VS |
| FC7253Q005XS |
| FDHD280G05B |
| 0280D005BN |
| 0280D005BN3HC |
| 0280D005BN4HC |
| 0280D005BNHC |
| 2055759 |
| 1251548 |
| 1252797 |
| 1260896 |
| 2066749 |
| 0280D005BN3HCV |
| 0280D005BN4HCV |
| 0280D005BNHC2 |
| 0280D005BNHCV |
| 0280D005ON |
| 0280D005ONV |
| 306218 |
| 020280D6VG30HCEP |
| 020280D6VG30HCEV |
| 3062186VG |
| MF0060216 |
| DC2801A06ANPXX |
| DP108A005ANPXX |
| MP3433 |
| MP3436 |
| D39B05GV |
| FC7253Q005BS |
| SBF0280DZ05 |
| SBF0280DZ05B |
| SBF0280DZ05V |
| 280D005N |
| 280D005NV |
| 14521406 |
| 14521406V |
| V3RB4C05 |
| V3RV4C05 |
| BE280P06A |
| BE280P06AV |
| WN200140 |
| BE16DNL146MB |
| BE16DNL146MV |
| HC2216FCN14H |
| HC2216FCN14Z |
| HC2216FDN14H |
| HC2216FDN14Z |
| HC2216FKN14H |
| HC2216FKN14Z |
| HC2216FMN14H |
| HC2216FMN14Z |
| HC2216FUN14H |
| HC2216FUN14Z |
| H0280D006EB |
| H0280D006EV |
| 50362075 |
| HC2216FHN14Z |
| HC2216FRN14Z |
| HC2216FRN14H |
| HC2216FHN14H |
| DC2801A06ANPXXP01 |
| DP108A005ANPXXP01 |
| 0280 D005 BN3HC |
| 86109 |
