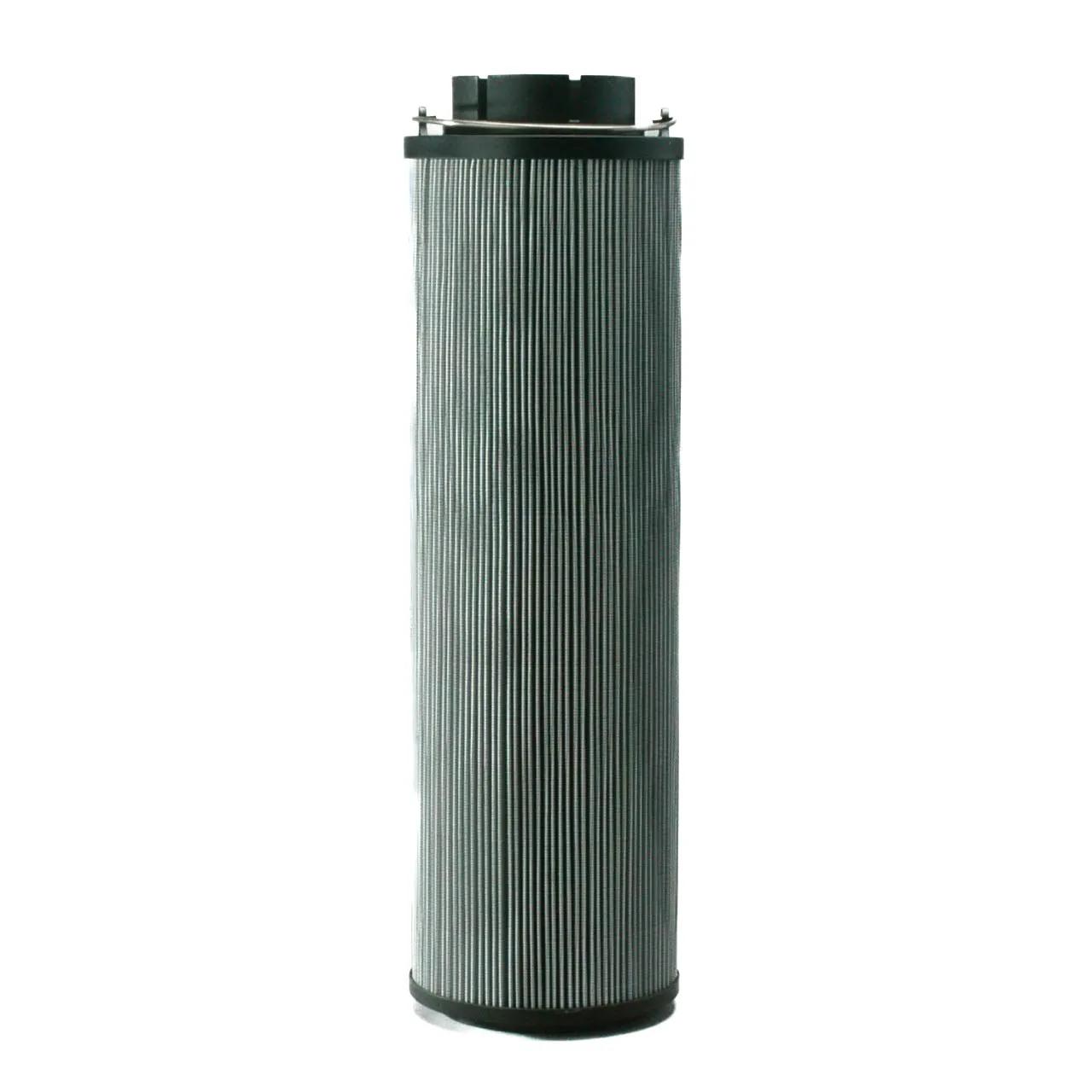

Hydraulic, Cartridge L: 14,29 in, OD: 5,72 in, ID: 3,78 in
#DONP566993
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 3.78 in (96.1 mm) |
| Length | 14-19/64 in (36.32 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 14.33 in (364 mm) |
| Length Range | 14 to 14.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP95RNL143MB |
| HP95RNL143MV |
| P566993 |
| DT0950R5UM |
| 10950LAH3XLA006VSO3000 |
| RHR950G03B |
| RHR950G03V |
| 0950R003BN3HC |
| 0950R003BN4HC |
| 0950R003BNHC |
| 1263043 |
| 2078112 |
| 0950R003BN3HCV |
| 0950R003BN4HCV |
| 0950R003BN4HCVSO103H |
| 0950R003BNHCV |
| 0950R003ONV |
| 0950R003ONVSO103H |
| 020950R3VG30HCSV |
| DK310A003VNCP01 |
| MP5427 |
| HC2295FDP14H |
| HC2296FDP14H |
| HC2296FDP14H50 |
| HC2296FDP14Z |
| HC2296FDP14Z50 |
| HC2295FMP14H |
| HC2296FMP14H |
| HC2296FMP14H50 |
| HC2296FMP14Z |
| HC2296FMP14Z50 |
| SBF0950RZ03V |
| RE250G03V |
| 950R003N |
| 950R003NV |
| 15121403V |
| E0952V4C03 |
| V0952V4C03 |
| R53D03GV |
| BE950R03A43V |
| R928022718 |
| DE0952V4C03 |
| BE95RNL143MV |
| HC2295FKP14H |
| HC2296FKP14H |
| HC2296FKP14Z |
| HC2295FCP14H |
| HC2296FCP14H |
| HC2296FCP14Z |
| HC2296FKP14H50 |
| HC2296FCP14H50 |
| HC2295FCP14Z |
| HC2295FDP14Z |
| HC2295FKP14Z |
| HC2295FMP14Z |
| HC2295FUP14Z |
| HC2296FCP14Z50 |
| HC2296FKP14Z50 |
| H0950R003EB3V |
| HC2295FRP14Z |
| HC2296FRP14H50 |
| HC2296FRP14Z |
| HC2296FRP14Z50 |
| HC2295FHP14H |
| HC2295FHP14Z |
| HC2296FHP14H |
| HC2296FHP14H50 |
| HC2296FHP14Z |
| HC2296FHP14Z50 |
| DK310A003VNC |
| 0950R0 |
