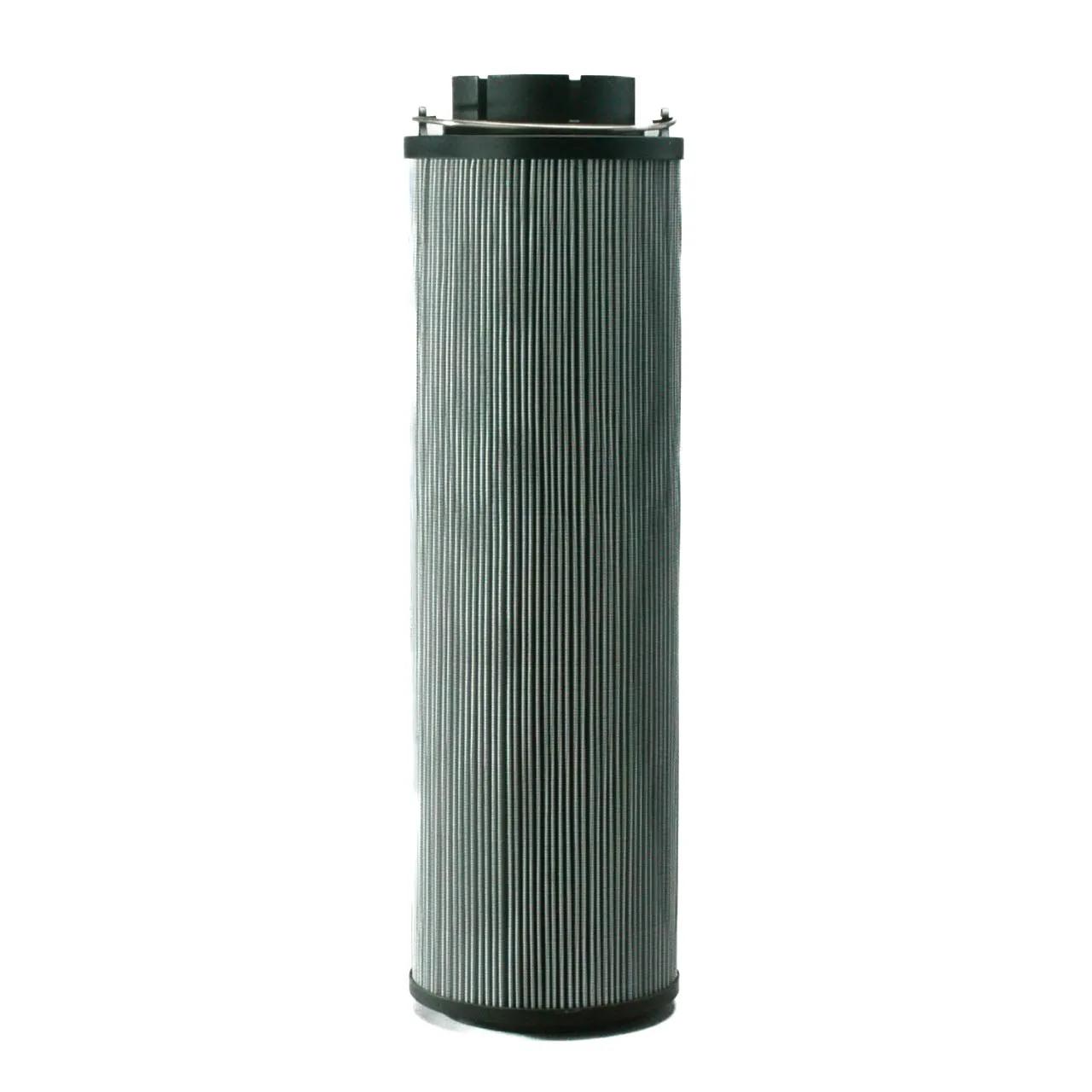

Hydraulic, Cartridge L: 14,29 in, OD: 5,72 in, ID: 3,78 in
#DONP566994
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 3.78 in (96.1 mm) |
| Length | 14-19/64 in (36.32 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 14.33 in (364 mm) |
| Length Range | 14 to 14.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP95RNL146MB |
| HP95RNL146MV |
| P566994 |
| DT0950R8UM |
| 30TR950H6LLLA |
| RHR950G05B |
| RHR950G05V |
| 2059107 |
| 0950R005BN3HC |
| 0950R005BN4HC |
| 0950R005BNHC |
| 1263040 |
| 1263044 |
| 2071494 |
| 0950R005BN3HCV |
| 0950R005BN4HCV |
| 0950R005BN4HCVSO103H |
| 0950R005BNHC2 |
| 0950R005BNHCV |
| 0950R005ON |
| 0950R005ONV |
| 0950R005ONVSO103H |
| 020950R6VG30HCSV |
| 3105746VG |
| DC950CA06ANPXX |
| DK310A005ANCPXX |
| MP5430 |
| MP5436 |
| HC2296FDN14H |
| HC2296FDN14H50 |
| HC2296FDN14Z |
| HC2296FDN14Z50 |
| HC2296FMN14H |
| HC2296FMN14H50 |
| HC2296FMN14Z |
| HC2296FMN14Z50 |
| SBF0950RZ05B |
| SBF0950RZ05V |
| RE250G05B |
| RE250G05V |
| 950R005N |
| 950R005NV |
| 15121406 |
| 15121406V |
| ER0952B4C05 |
| E0952B4C05 |
| E0952V4C05 |
| V0952B4C05 |
| V0952V4C05 |
| R53D05GV |
| BE950R06A43 |
| BE950R06A43PTIE |
| BE950R06A43V |
| XH0950R006EB3 |
| DE0952B4C05 |
| DE0952V4C05 |
| BE95RNL146MB |
| BE95RNL146MV |
| HC2295FKN14H |
| HC2296FKN14H |
| HC2296FKN14Z |
| HC2295FCN14H |
| HC2296FCN14H |
| HC2296FCN14Z |
| HC2296FKN14H50 |
| HC2296FCN14H50 |
| HC2295FCN14Z |
| HC2295FDN14H |
| HC2295FDN14Z |
| HC2295FKN14Z |
| HC2295FMN14H |
| HC2295FMN14Z |
| HC2295FUN14H |
| HC2295FUN14Z |
| HC2296FCN14Z50 |
| HC2296FKN14Z50 |
| H0950R006EB3 |
