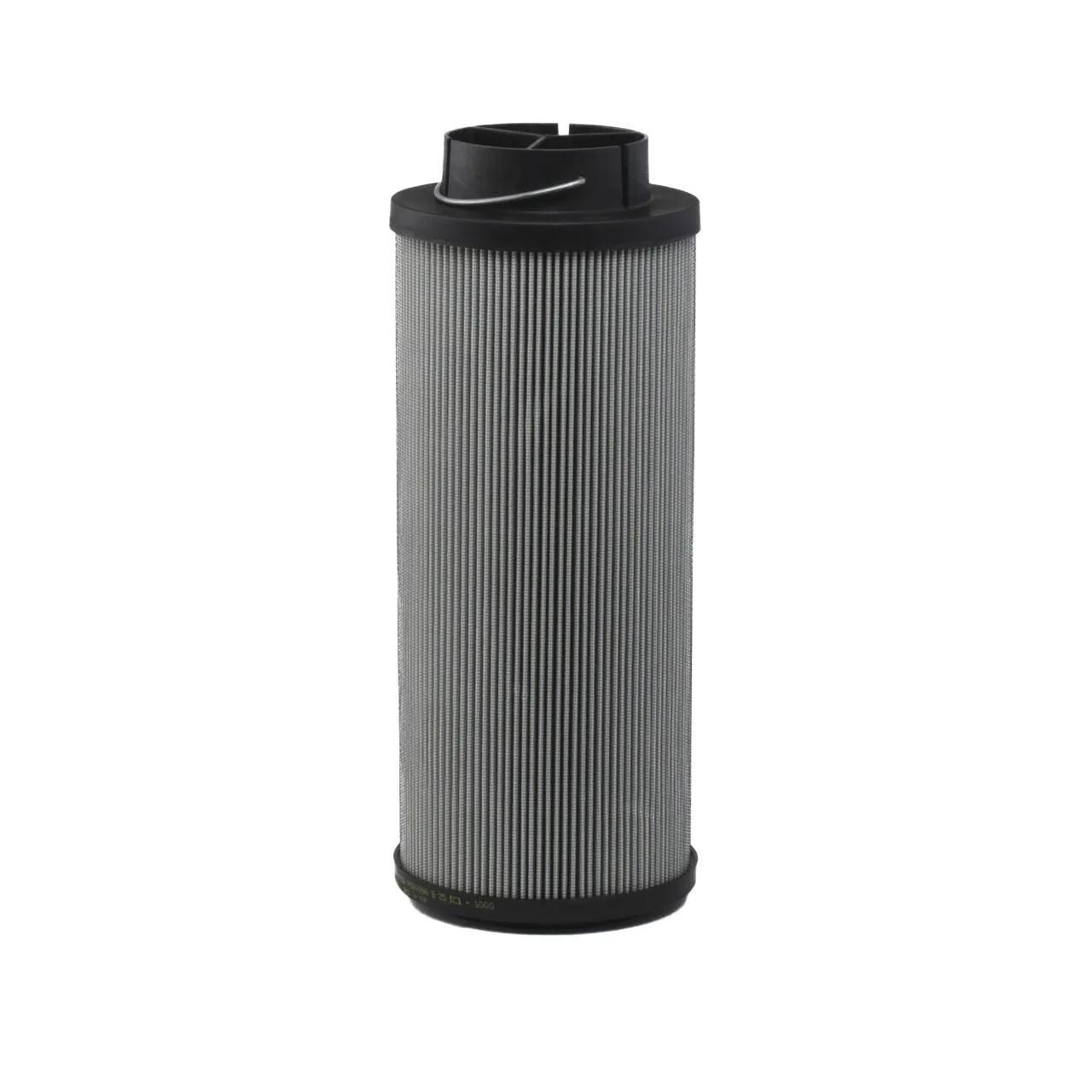

Hydraulic, Cartridge L: 14,29 in, OD: 5,72 in, ID: 3,78 in
#DONP566996
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 25 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 3.78 in (96.1 mm) |
| Length | 14-19/64 in (36.32 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Length Range | 14 to 14.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566996 |
| 0950R020BN4HC |
| HP95RNL1425MB |
| HP95RNL1425MV |
| DT0950R25UM |
| RHR950G20B |
| RHR950G20V |
| SH74045 |
| SH74045V |
| 0950R020PHC |
| 1262249 |
| 0950R020BN3HC |
| 0950R020BNHC |
| 1263046 |
| 2067973 |
| 0950R020BN3HCV |
| 0950R020BN4HCV |
| 0950R020BNHCV |
| 0950R020ONV |
| 0950R020PHCV |
| 0950R020BNHC2 |
| HC2295FMT14H |
| 020950R20VG30HCSV |
| MP5454 |
| HC2295FDT14H |
| HC2296FDT14H |
| HC2296FDT14H50 |
| HC2296FDT14Z |
| HC2296FDT14Z50 |
| HC2296FMT14H |
| HC2296FMT14H50 |
| HC2296FMT14Z |
| HC2296FMT14Z50 |
| 950R020N |
| 950R020NV |
| 15121425V |
| R53D20GV |
| DE0952V4C20 |
| BE95RNL1425MV |
| HC2295FKT14H |
| HC2296FKT14H |
| HC2296FKT14Z |
| HC2295FCT14H |
| HC2296FCT14H |
| HC2296FCT14Z |
| HC2296FKT14H50 |
| HC2296FCT14H50 |
| HC2295FCT14Z |
| HC2295FDT14Z |
| HC2295FKT14Z |
| HC2295FMT14Z |
| HC2295FUT14Z |
| HC2296FCT14Z50 |
| HC2296FKT14Z50 |
| H0950R025EB3V |
| HC2296FRT14Z50 |
| SBF0950RZ25B |
| SBF0950RZ25V |
| RE250G20B |
| RE250G20V |
| RE250N20V |
| E0952V4C20 |
| V0952V4C20 |
| BE950R25A43V |
| HC2295FRT14H |
| HC2295FRT14Z |
| HC2296FRT14Z |
| HC2295FHT14H |
| HC2295FHT14Z |
| HC2296FHT14H |
| HC2296FHT14H50 |
| HC2296FHT14Z |
| HC2296FHT14Z50 |
| 0950 R020 BN3HC |
| 020950R2 |
