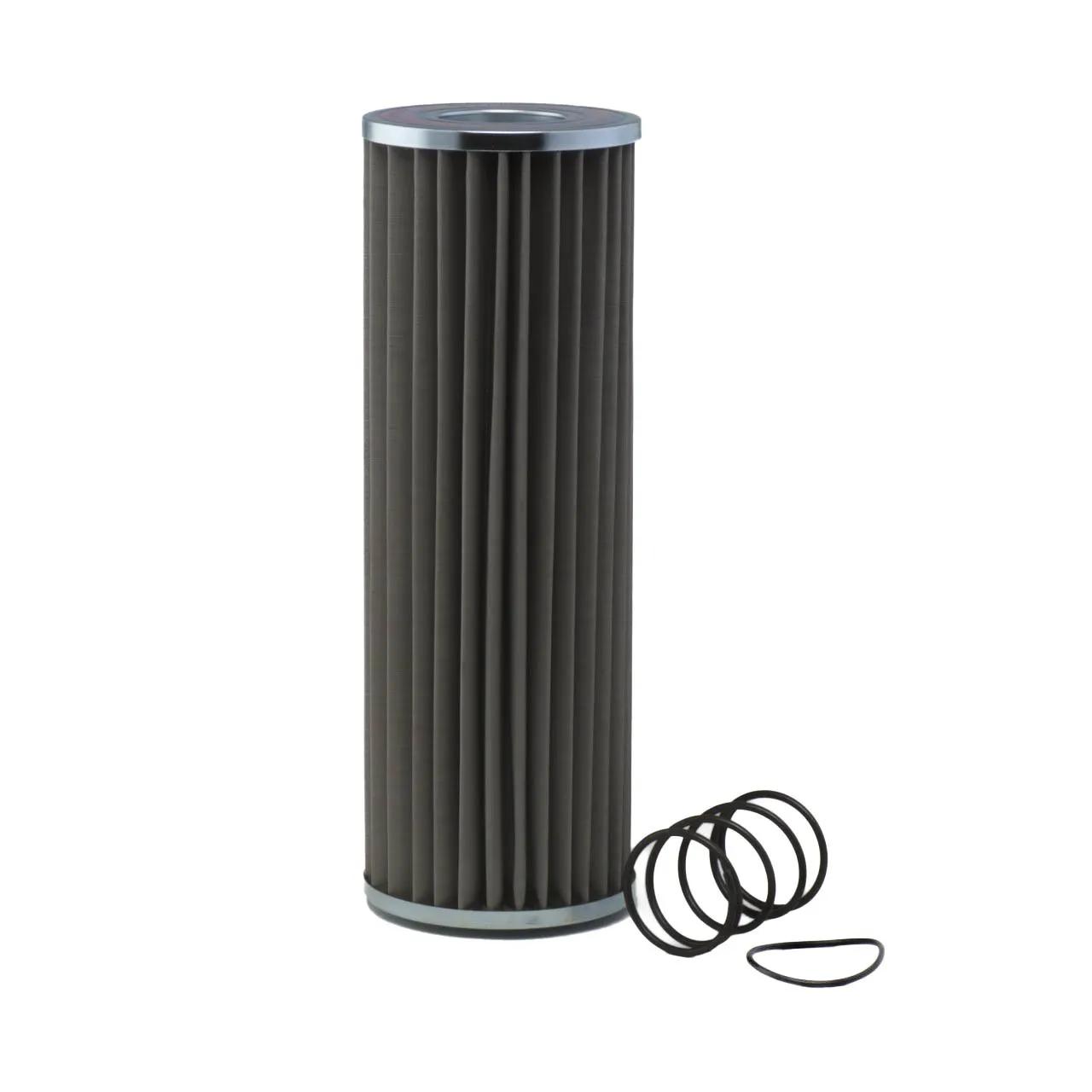

Hydraulic, Cartridge L: 15,75 in, OD: 5,52 in, ID: 2,51 in
#DONP171583
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 2 | 60 Micron |
| Efficiency Beta 2 (Micron) | 60 Micron |
| Inner Diameter | 2.51 in (63.8 mm) |
| Length | 15-3/4 in (40.01 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Series | FIK |
| Length Range | 15 to 15.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P171583 |
| R32C60TB |
| PT23467 |
| K070044 |
| K070056 |
| K070098 |
| K070110 |
| K070230 |
| K070236 |
| K070316 |
| K070362 |
| K070416 |
| K070445 |
| K070457 |
| K070703 |
| CR800 |
| CR8006 |
| R166T125B |
| R166T60B |
| FR166T60B |
| SH63339 |
| F75M60A |
| F75M90A |
| F75M60NA |
| R065EAR753N6 |
| HY12242 |
| HY12243 |
| D10800FN |
| 140099 |
| RE200MCV1 |
| RE200MS1 |
| F75M60AP01 |
| F75M60NAP01 |
| 2191-P171583 |
| BD7-1583 |
| CR800/06 |
| CR800/6 |
| DONP171583 |
| MF7501M60NB |
| MF7501M60NBP01 |
| SFMF4-16-60UW |
| HPMF4L1660WB |
| DN P171583 |
| DN P171583 |
| F75M60 |
