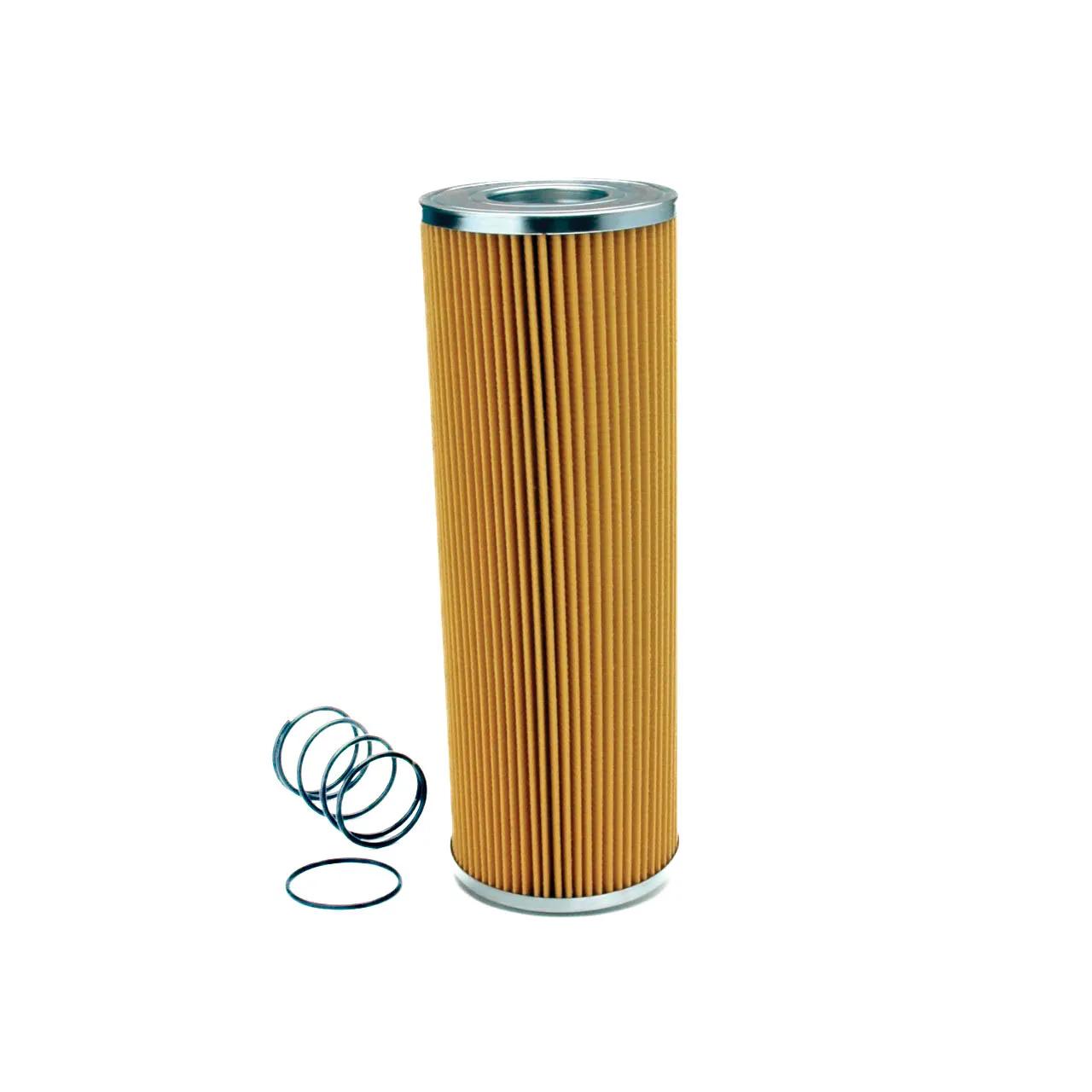

Hydraulic, Cartridge L: 15,75 in, OD: 5,52 in, ID: 2,56 in
#DONP171582
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 2 | 27 Micron |
| Efficiency Beta 2 (Micron) | 27 Micron |
| Inner Diameter | 2.56 in (65.1 mm) |
| Length | 15-3/4 in (40.01 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Series | FIK |
| Length Range | 15 to 15.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P171582 |
| R32C25CB |
| HPMF4L1625MB |
| K051466 |
| K070043 |
| K070055 |
| K070097 |
| K070109 |
| K070229 |
| K070235 |
| K070315 |
| K070321 |
| K070348 |
| K070415 |
| K070444 |
| K070472 |
| CR8003 |
| R166C25B |
| F75P20A |
| HY12241 |
| D10800BN |
| DRE7B |
| F2470543506 |
| F2470963506 |
| F75P20AP01 |
| DN P171582 |
| DN P171582 |
| 2191-P171582 |
| CR800/3 |
| DONP171582 |
| PT9250 |
| PT9250JAB |
| RE200CV1 |
