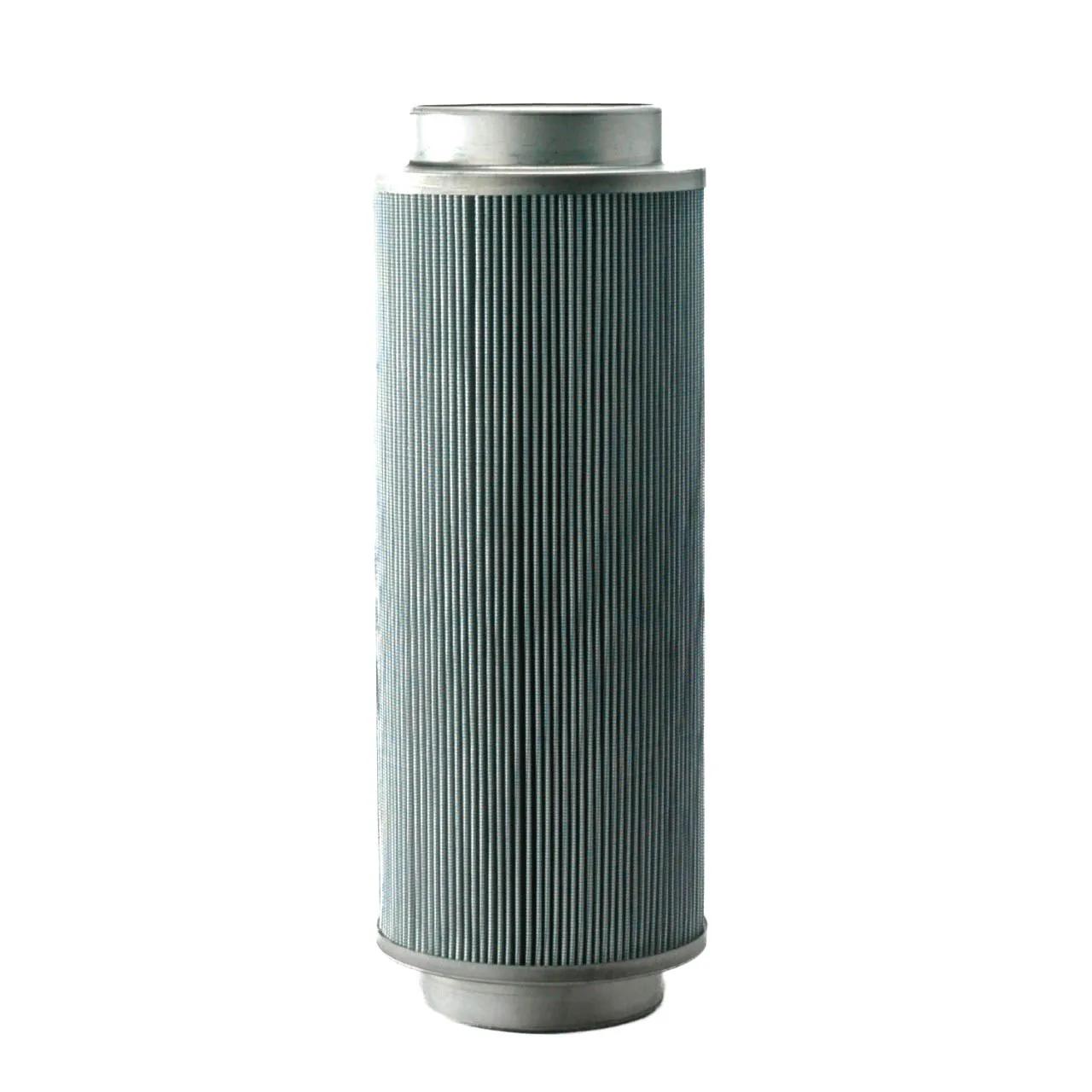

Hydraulic, Cartridge L: 16,1 in, OD: 5,94 in, ID: 4,12 in
#DONP566252
Product Overview
HYDRAULIC FILTER, CARTRIDGE DT
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 4.12 in (104.7 mm) |
| Length | 16-3/32 in (40.87 cm) |
| Outer Diameter | 5-15/16 in (15.09 cm) |
| Overall Length | 16.09 in (408.7 mm) |
| Series | W041 |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP8310L1612MB |
| HP8310L1612MV |
| P566252 |
| DT83101614UM |
| R831H1612A |
| R831H1612H |
| F831016K12B |
| F831016K12V |
| HF30308 |
| 52YT22 |
| 11416D12BN |
| H831016010BN |
| 2071457 |
| 11416D12BNV |
| A912076 |
| A912078 |
| KM83101612 |
| KM83101612V |
| KMP8310A12B16 |
| KMP8310A12V16 |
| LH95570 |
| LH95570V |
| MP3404 |
| MP5224 |
| HC8310FDS16HX321 |
| HC8310FDS16ZX321 |
| HC8310FMS16HX321 |
| HC8310FMS16ZX321 |
| HC8310FKS16HX321 |
| HC8310FKS16ZX321 |
| 933046Q |
| 16QPMLZ10V |
| 16QZ10V |
| 16QPMLS10 |
| 16QPMLS10V |
| 16QPMLS15V |
| 16QPMLS25V |
| 16QPMLS7 |
| 16QPMLS7V |
| 16QPMLZ10 |
| 16QPMLZ10B |
| 83101612UM |
| 83101612UMV |
| 15031612 |
| 15031612V |
| V0411B5L10 |
| V0411V5L10 |
| E0411B5L10 |
| E0411V5L10 |
| DE0411B5L10 |
| DE0411V5L10 |
| BE8310L1612MB |
| BE8310L1612MV |
| HC8310FDS16H |
| HC8310FDS16Z |
| HC8310FKS16H |
| HC8310FKS16Z |
| HC8310FUS16H |
| HC8310FUS16Z |
| HC8310FCS16H |
| HC8310FCS16Z |
| HC8310FMS16H |
| HC8310FMS16Z |
| DP83150KFB |
| DP83150KFV |
| 2831L012B16 |
| 2831L012V16 |
| 3831DGHB16 |
| 3831DGHV16 |
| SF83101612UM |
| SF83101612UMV |
| HC8310FRS16HX321 |
| HC8310FRS16Z |
| HC8310FRS16H |
| HC8310FHS16H |
| HC8310FHS16HX321 |
| HC8310FHS16Z |
| HC8310FHS16ZX321 |
| 02060589 |
| HC8310FCS16HX321 |
| HC8310FCS16ZX321 |
| 11416D |
| 2060589 |
